Instrument panel light dimmer switch -E20-, removing and installing
>>
Removing
Instrument panel light dimmer switch -E20-, removing and installing: Removing
Remove light switch. See
MAIN LIGHT SWITCH, REMOVING AND INSTALLING
.

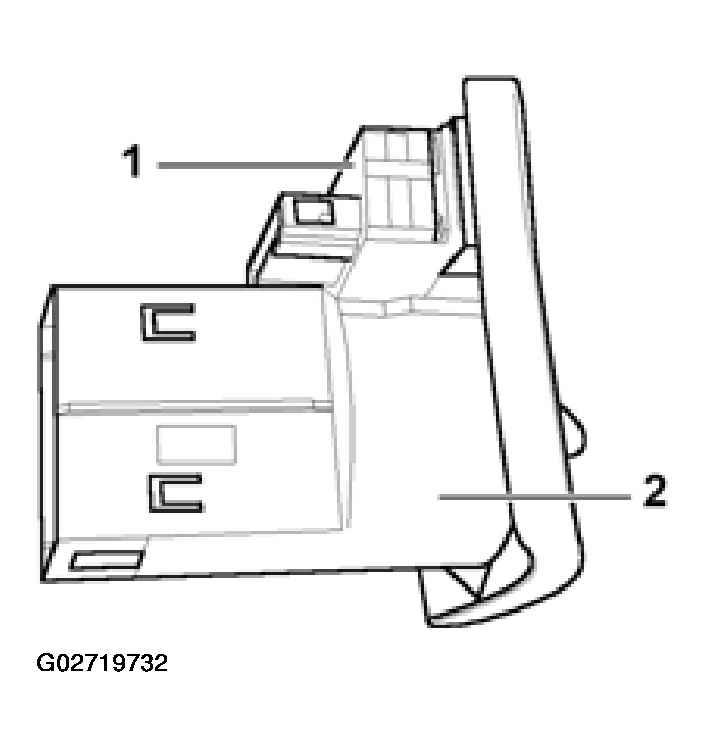

Using flat screwdriver, lift dimmer switch -1- and pull it out of light switch housing -2-.
Fig 1: Lifting Instrument Panel Dimmer Switch Of Light Switch Housing
