A/C control head -E87-, removing and installing: Removing

Remove radio. See "CONCERT" RADIO, REMOVING AND INSTALLING , "SYMPHONY" RADIO, REMOVING AND INSTALLING , SATELLITE RADIO -R146- (SEDAN), REMOVING AND INSTALLING and SATELLITE RADIO -R146- (AVANT), REMOVING AND INSTALLING .
Remove bolts -A-.
Remove A/C control head -B-.

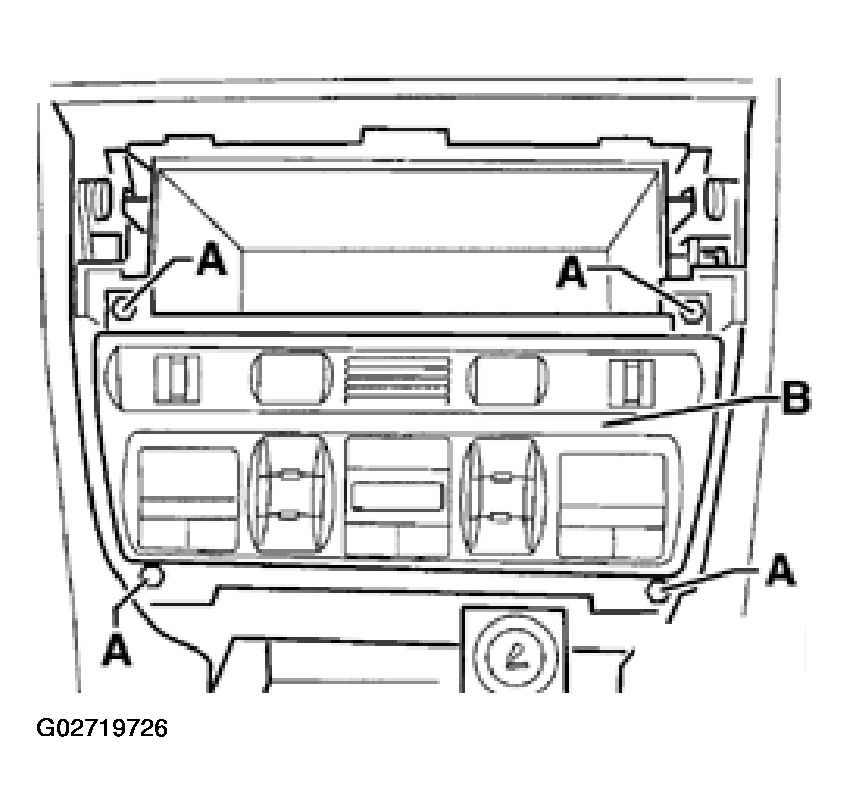

Fig 1: Removing Bolts & A/C Control Head

Press back retainer catches -F- on connectors and disconnect electrical connectors -A- through -D-.
Press back retainer catches -G- on connector and disconnect electrical connector -E- for heated rear window.

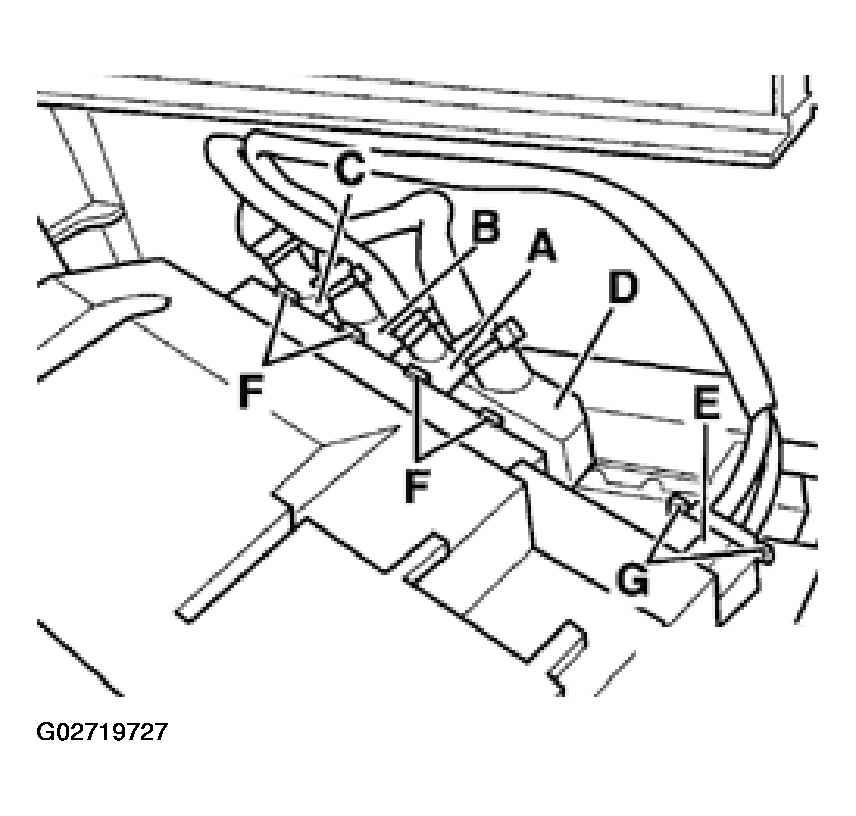

Fig 2: Pressing Back Retainer Catches On Connectors And Disconnecting Electrical Connectors

To remove switches for seat heating, press back retainer tabs -A- and pull switches -B- out from rear (arrow).

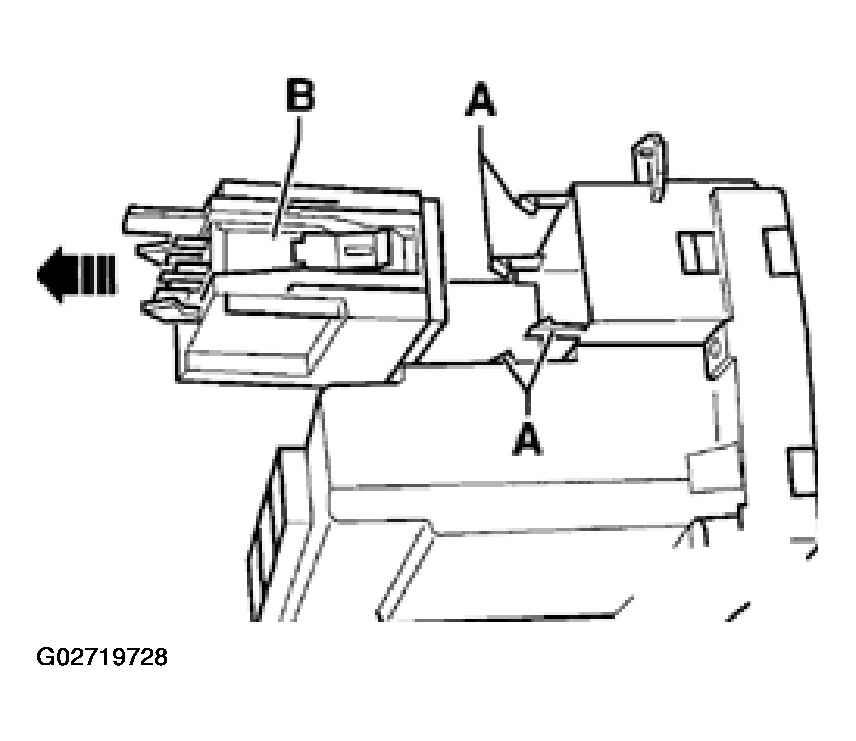

Fig 3: Pulling Seat Heating Switches Out From Rear
