Removing
Heated door lock control module -J210-, removing and installing: Removing
Remove door trim. See
FRONT DOOR TRIM, REMOVING AND INSTALLING
.
Remove bolts -2- from nuts -3-.
Remove electrical connectors and remove heated door lock control module -1-.

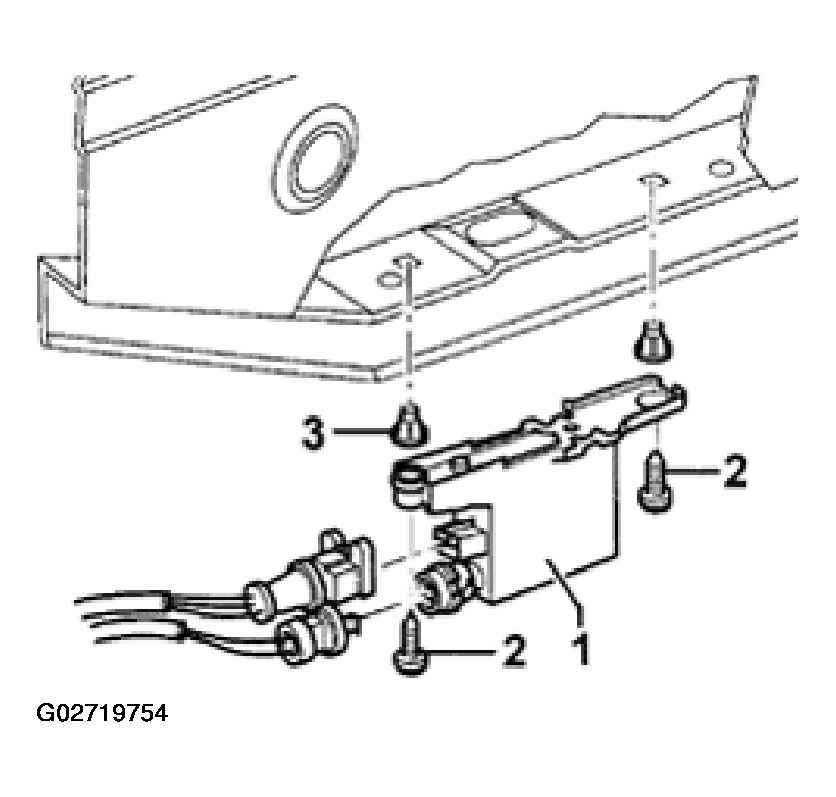

Fig 1: Removing Heated Door Lock Control Module
