Interior lights, servicing
>>
Luggage compartment lights, removing and installing
>>
Removing
Luggage compartment lights, removing and installing: Removing
Using flat screwdriver, push in retaining tab -2- and pry out luggage compartment light -1-.
Disconnect electrical connectors -3-.

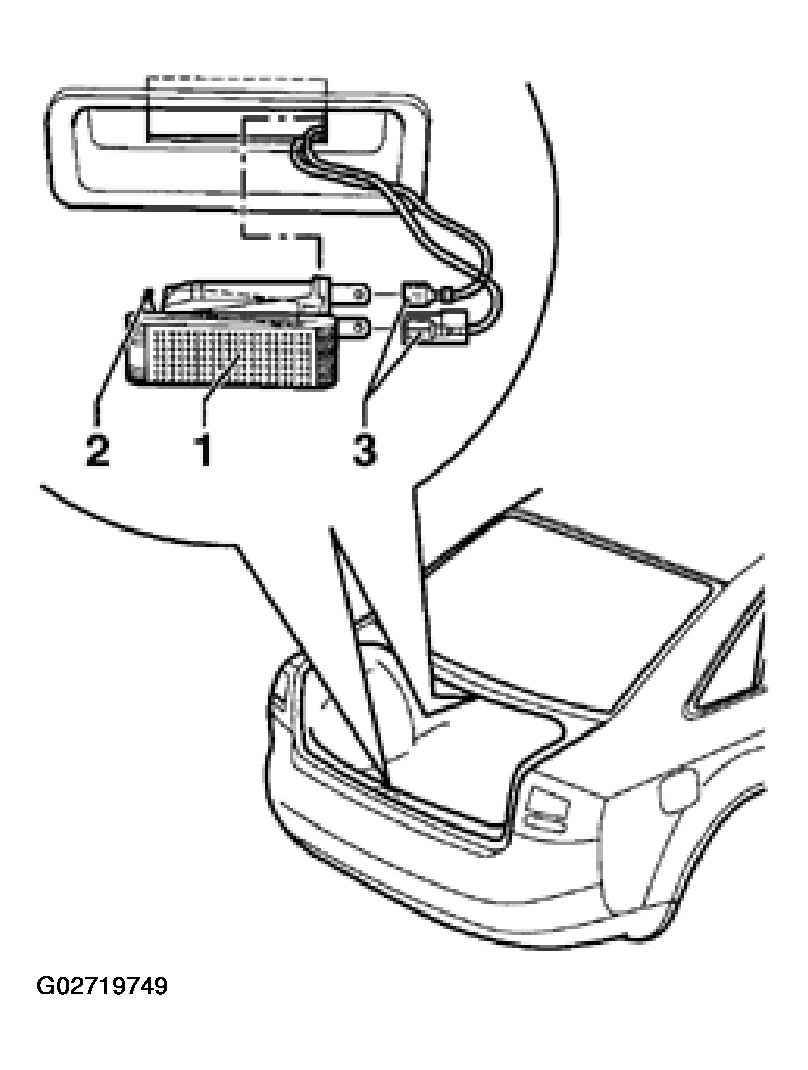

Fig 1: Prying Out Luggage Compartment Light
Remove bulb from back of light fixture.
