Interior lights, servicing
>>
Glove box light, removing and installing
>>
Removing
Glove box light, removing and installing: Removing
Using flat screwdriver, push in retaining tab -2- and pry out glove box light -1-.
Disconnect electrical connectors -3-.

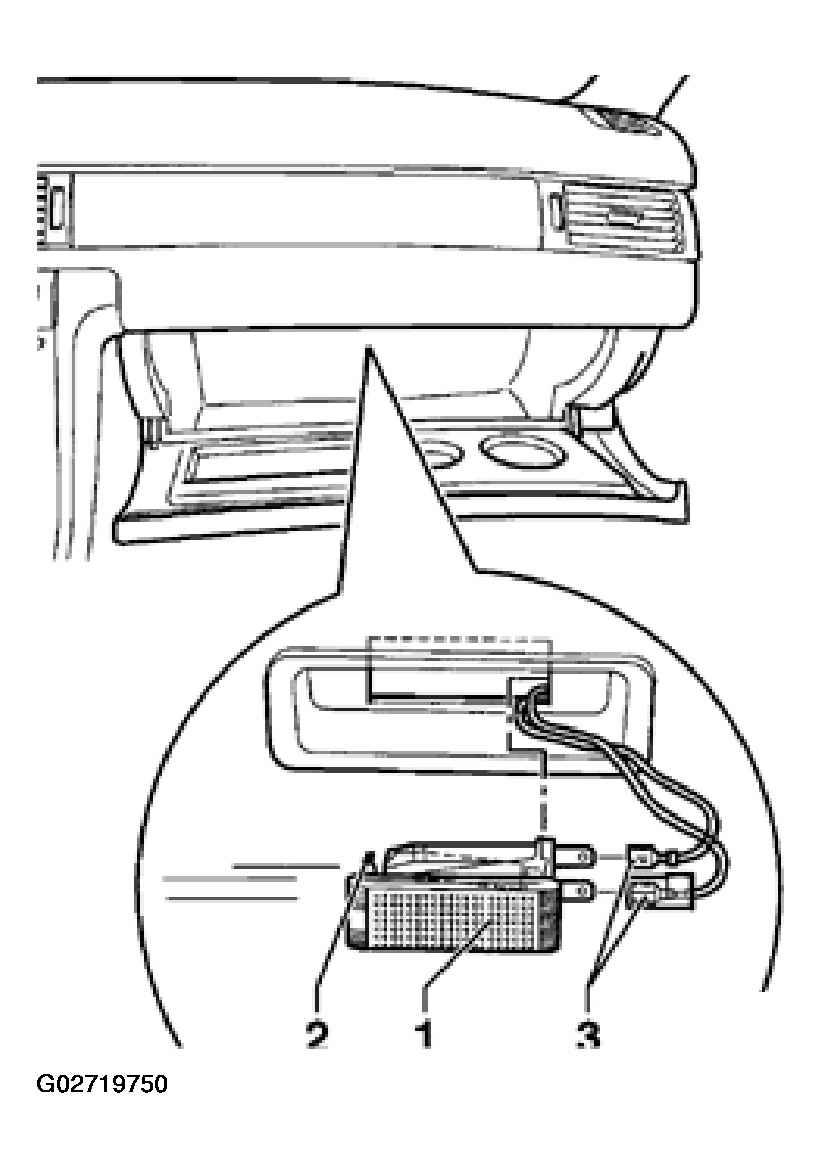

Fig 1: Prying Out Glove Box Light & Disconnecting Electrical Connectors
Remove bulb from back of glove box light.
