Strut Assembly: Removal

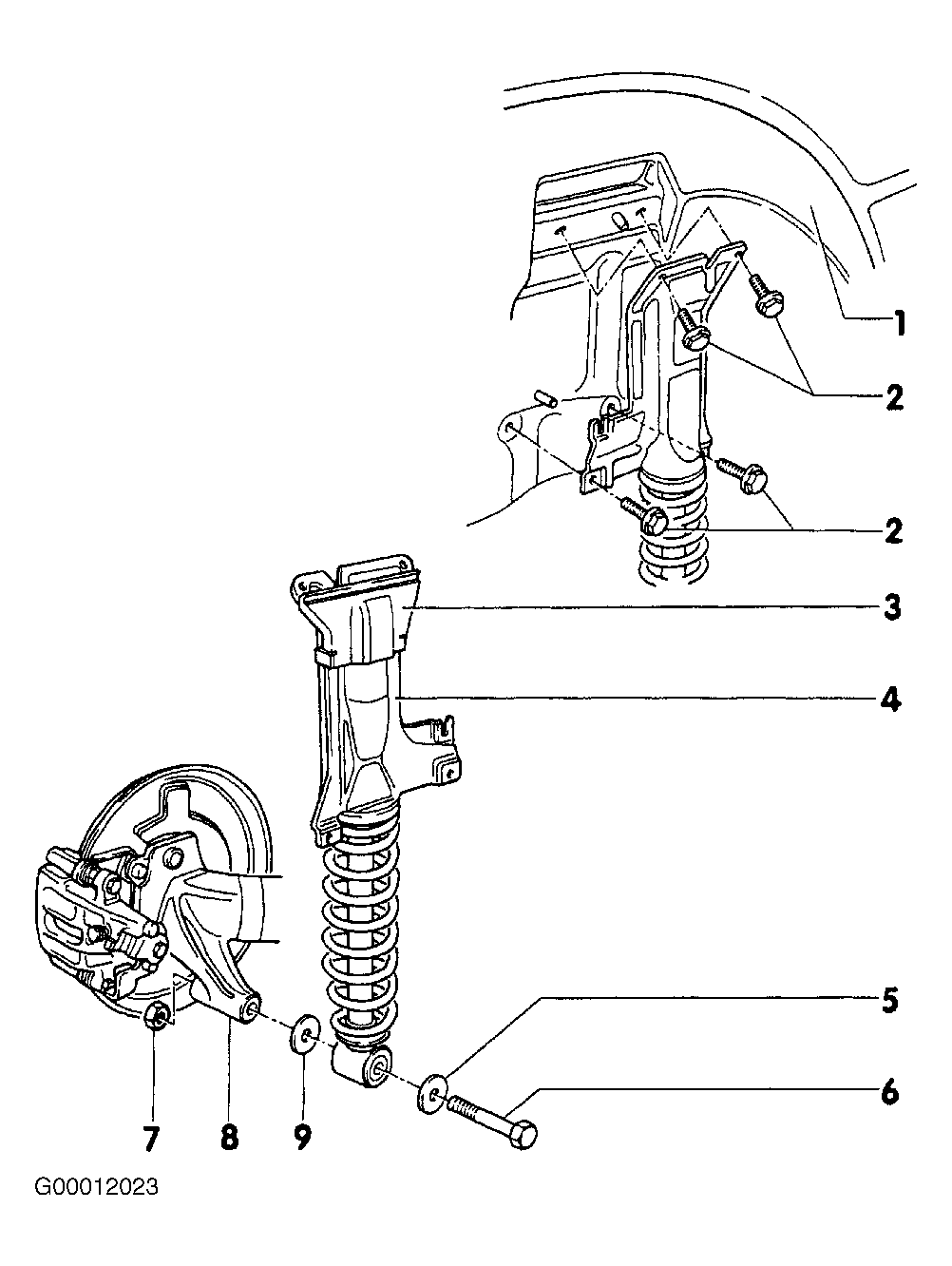

Support rear axle with hoist or transmission jack. DO NOT lift vehicle. Remove wheel. Remove lower strut assembly nut and bolt. See Fig 1 . If a washer is located between strut assembly and axle, ensure washer is saved for installation. Discard lower strut assembly nut. Remove upper adaptor bolts/nuts and remove strut assembly.
