Strut Assembly: Assembly

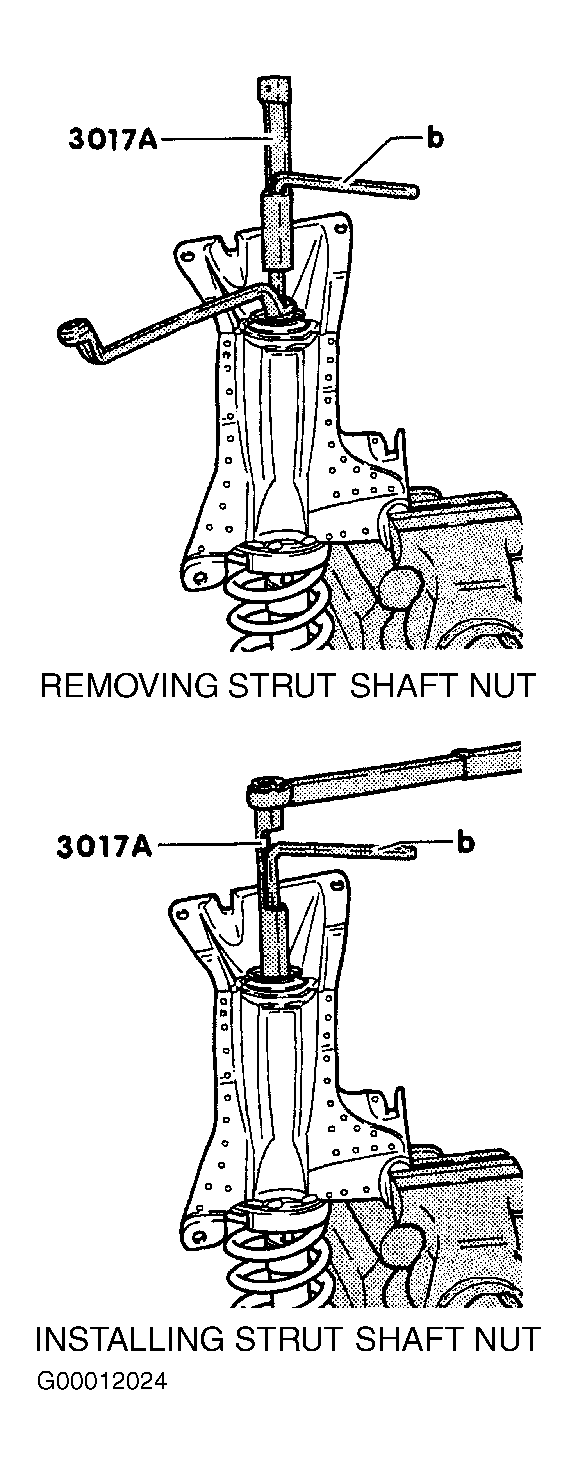

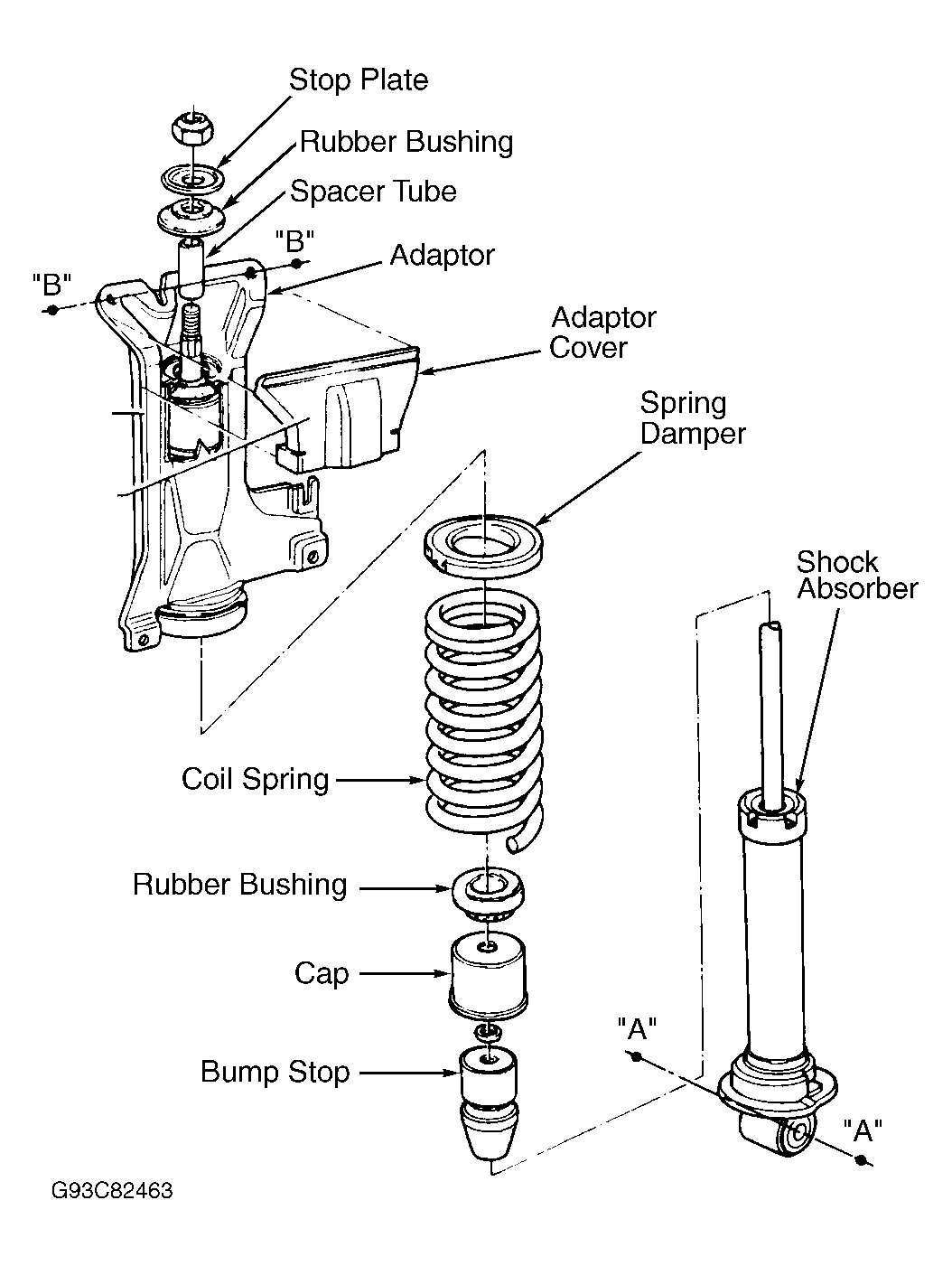

To assemble, reverse removal procedure. Ensure spring is aligned with stop on lower seat. Ensure adaptor axis "B" is perpendicular (87-93 degrees) to lower shock bolt axis "A". See Figure . Use NEW shock absorber shaft nut. See Figure . Tighten fasteners to specification. See TORQUE SPECIFICATIONS  .
