Actuating camshaft adjustment valves -N205-, -N208-

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Press right arrow button.

Indicated on display

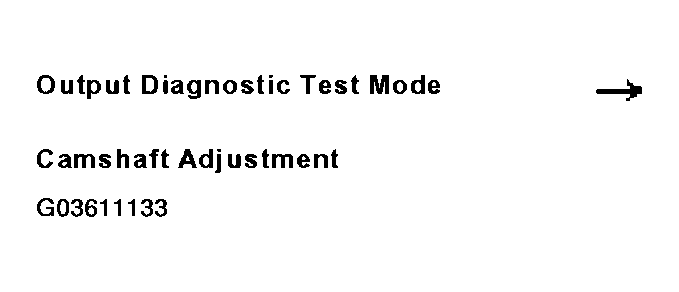

Fig 1: VAG 1551 Scan Tool Display - Actuating Camshaft Adjustment Valves

Courtesy of AUDI OF AMERICA, INC.

Camshaft adjustment valves 1 and 2 (-N205- and -N208-) will continue to be activated (or will click) for about 1 minute.

If camshaft adjustment valve 1 or 2 is not activated:

See ENGINE -- CYLINDER HEAD, VALVETRAIN
