Actuating Secondary Air Injection (AIR) Pump Relay - J299-

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Only vehicles with automatic transmission are equipped with a secondary air injection system. Vehicles with a manual transmission do not have a secondary air injection system. For this reason, on vehicles with a manual transmission the following component: Secondary Air Injection (AIR) Pump Relay -J299- will not be displayed.

Press --> button.

Indicated on display

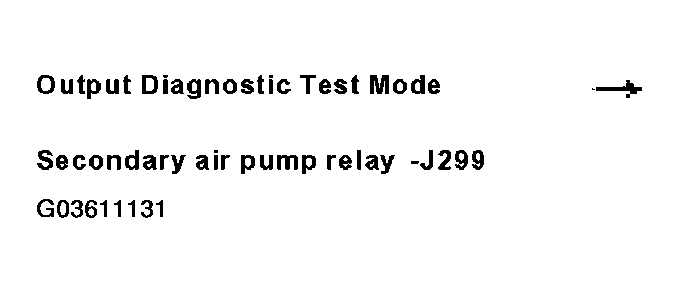

Fig 1: VAG 1551 Scan Tool Display - Actuating Secondary Air Injection (AIR) Pump Relay

Courtesy of AUDI OF AMERICA, INC.

Secondary Air Injection (AIR) Pump Relay -J299- activates

Secondary Air Injection (AIR) Pump Motor -V101-, which runs for approx.: 1 minute at intervals.

If the Secondary Air Injection (AIR) Pump Motor -V101- does not run at intervals:

Check Secondary Air Injection (AIR) Pump Relay -J299.
See SECONDARY AIR INJECTION (AIR) PUMP RELAY -J299- AND ACTIVATION, CHECKING
