Wheelhousing liner, rear

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to Fig 1 .

Rear wheelhousing liner
- Remove rear wheel before removing wheelhousing liner
  - Remove screws -2- and cap nut -4-.
  - Remove wheelhousing liner and pull out in downward direction.
Self-tapping screw
- 1.5 Nm (13 in. lb)
Expanding nut
Cap nut
- 1.5 Nm (13 in. lb)

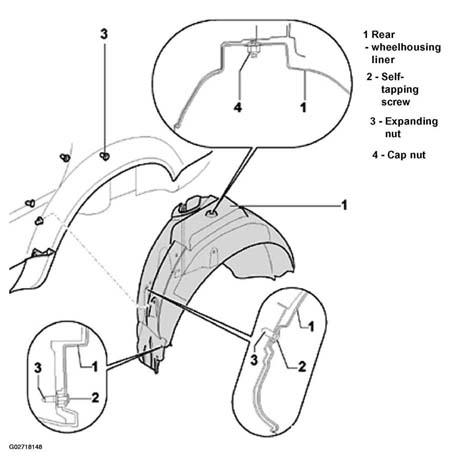

Fig 1: Identifying Wheel Housing Liner Assembly (Rear)

Courtesy of AUDI OF AMERICA, INC.
