Fuel Pump (FP) and Sender for fuel gauge - component overview: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

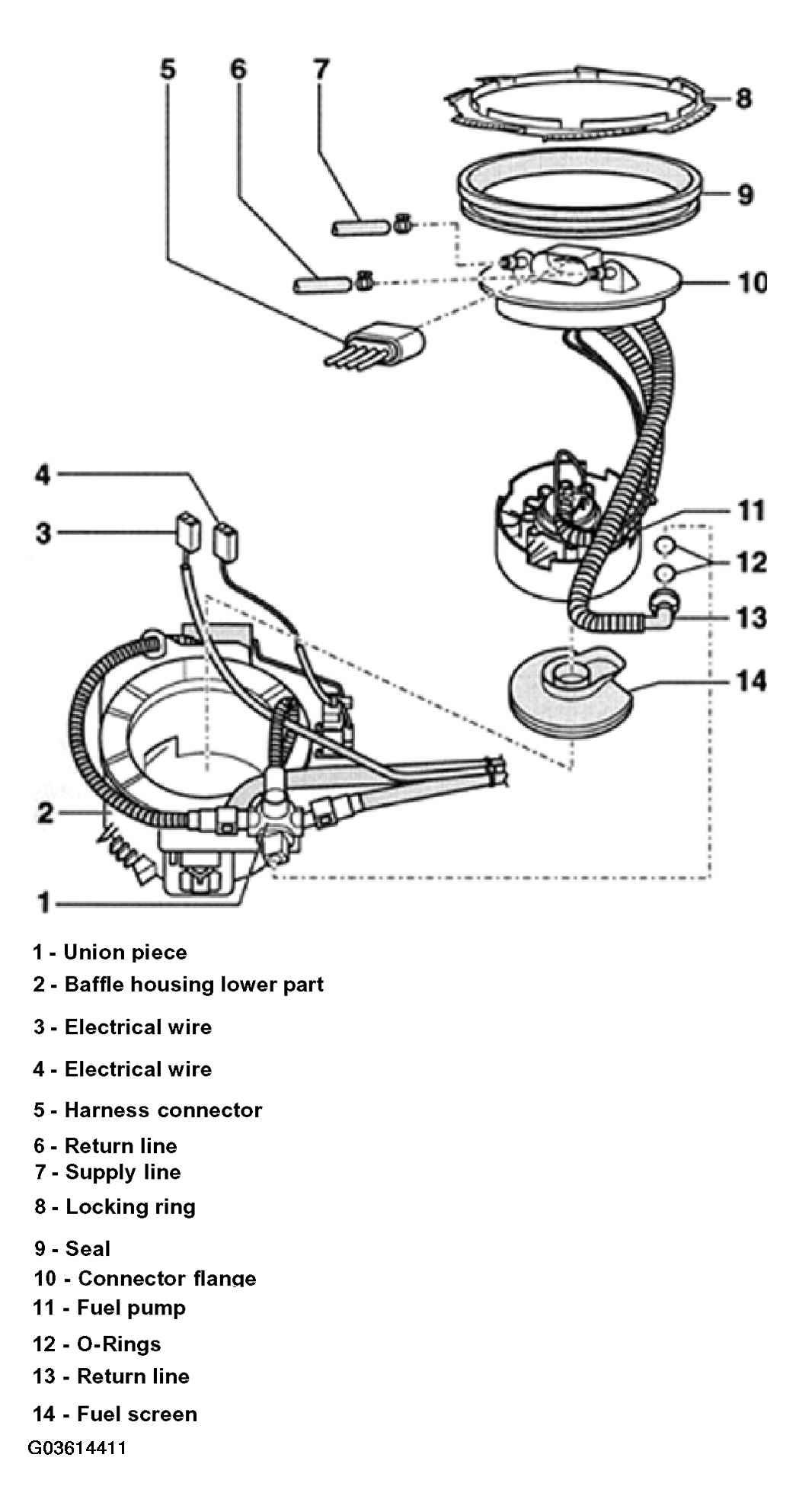

The following list refers to Fig 1.
- - Union piece
- Clipped in on baffle housing -Item 2- with retaining clips
- To remove, press toward left so that retaining clips disengage and lift upward
- Insert fuel line into baffle housing when installing
- To remove the Fuel Pump (FP), union piece must be unclipped so that fuel return line (from connector flange) can be disconnected
- Different versions, allocation. See parts catalog.
- - Baffle housing lower part
- With suction jet pump
- - Electrical wire
- To Fuel Level Sensor 2 -G169-, located on left side of fuel tank
- Connect on connector flange
- - Electrical wire
- To Sender for fuel gauge -G-
- Connect on connector flange
- - Harness connector
- for Fuel Pump (FP) and all senders for fuel gauge
- Disengaging. See RELEASING HARNESS CONNECTOR .
- - Return line
- Clipped in on front at fuel tank
- Mark before removing
- - Supply line
- To fuel filter
- Clipped in on front at fuel tank
- Mark before removing
- - Locking ring
- Use ring nut spanner 3087 to remove and install
- Tighten to 145 Nm
- - Seal
- replace
- to install, place into opening of fuel tank dry
- - Connector flange
- For Fuel Pump (FP)
- not individually replaceable
- Installation position: Note arrow marking
- - Fuel pump
- With Fuel Pump (FP) -G6-
- Different versions, allocation. Refer to Parts Catalog.
- Can be replaced only complete with connector flange
- Check Fuel Pump (FP) electrically. See FUEL PUMP (FP), ELECTRICAL TESTING .
- Checking fuel delivery. See DELIVERY QUANTITY OF FUEL PUMP (FP), CHECKING .
- Checking residual pressure. See FUEL PRESSURE REGULATOR AND RESIDUAL PRESSURE, CHECKING .
- Removing and installing. See FUEL PUMP, REMOVING AND INSTALLING .
- - O-Rings
- replace
- Check installation position
- - Return line
- To remove the Fuel Pump (FP), unclip union piece and disconnect fuel return line at union piece -item 1-, release using T40020 to do so. See RELEASING HOSE COUPLING OF RETURN LINE USING RELEASE TOOL T40020 .
- - Fuel screen
- not individually replaceable
- Clean if soiled
