Checking internal resistance

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Connect multimeter for resistance measurement as follows.

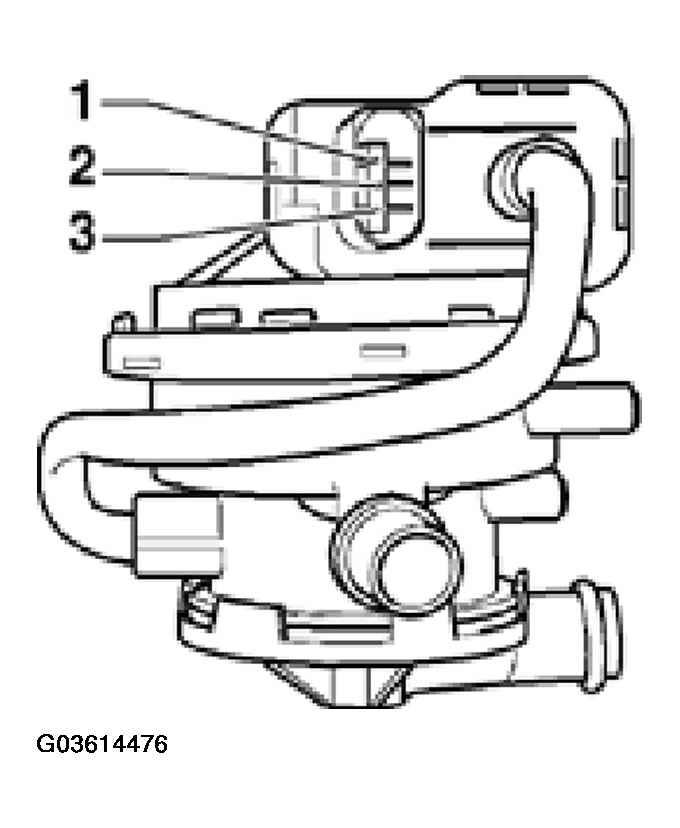

Fig 1: Identifying Leak Detection Pump Connector Terminals

Courtesy of AUDI OF AMERICA, INC.

LEAK DETECTION PUMP (LDP) -V144- CIRCUIT RESISTANCE TEST

Leak Detection Pump (LDP) -V144- Terminal	Specified value
1 + 3	640 to 720 Ω
2 + 3	15 to 17 Ω

If specified values are not obtained:

Replace Leak Detection Pump (LDP) -V144-. See item 9.

If specified values are obtained:
