Wheel Bearing (Press-In)

Using press, remove and install wheel bearing as illustrated. See Fig 1 and Fig 2 . When installing, ensure larger inner diameter of wheel bearing is facing outward towards wheel hub.

NOTE: Before inserting in wheel bearing housing, grease all around with brake cylinder paste G 000 650.

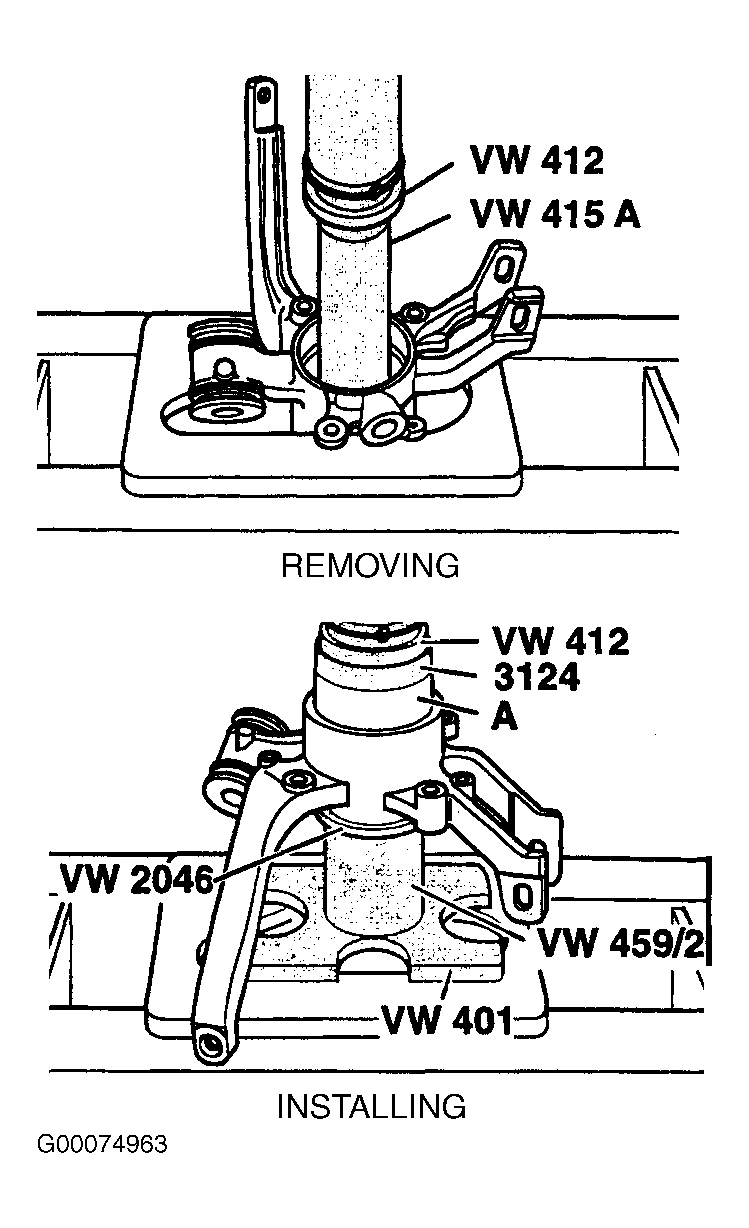

Fig 1: Removing & Installing Bearing (Press-In Bearing)

Courtesy of AUDI OF AMERICA, INC.

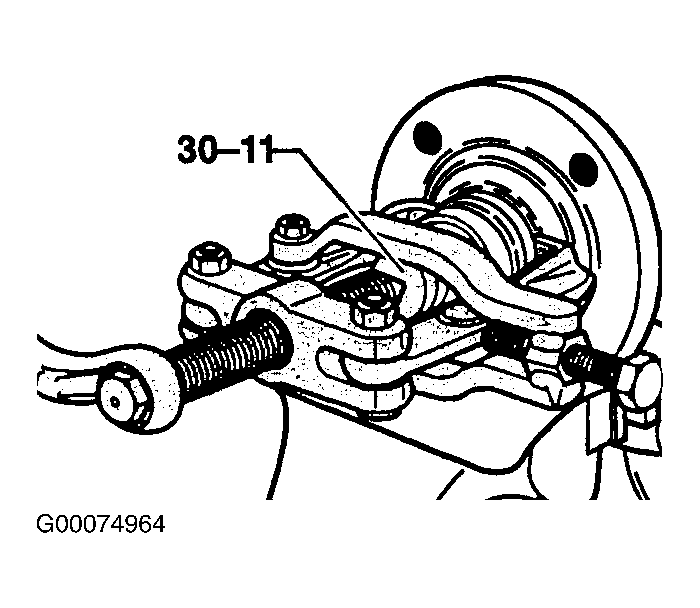

Fig 2: Removing Inner Bearing Race

Courtesy of AUDI OF AMERICA, INC.

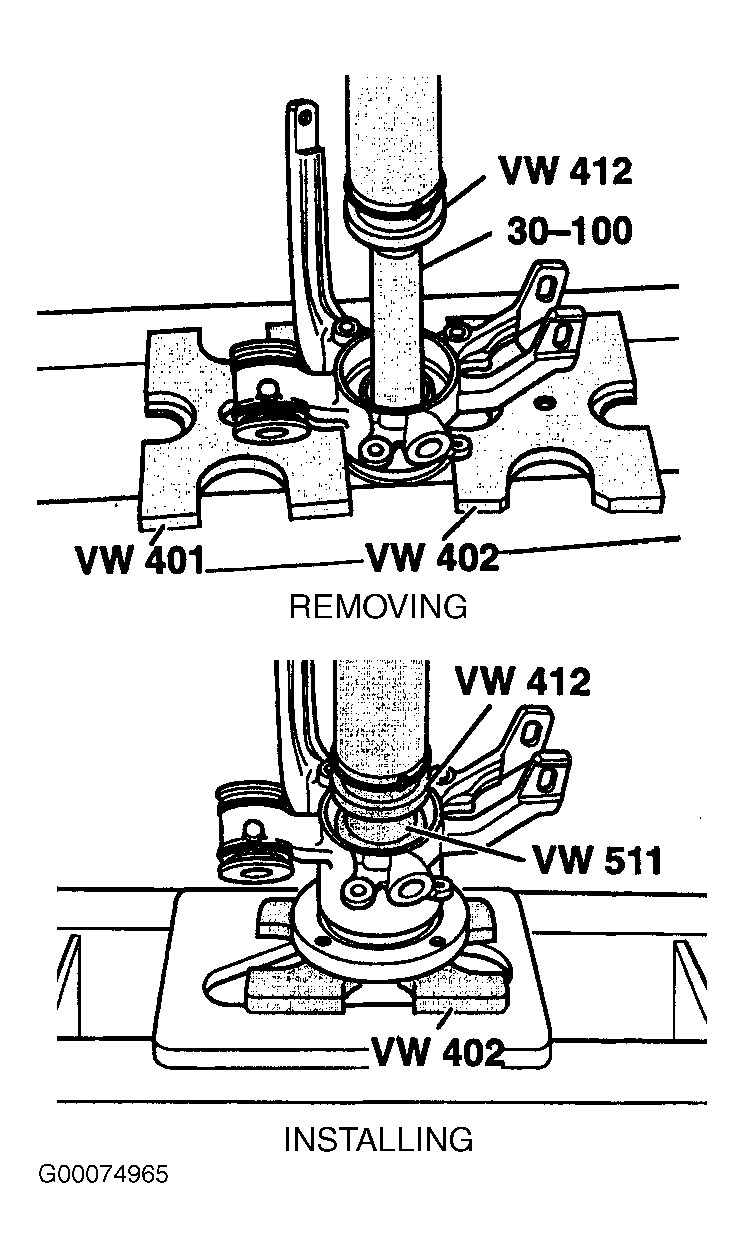

Fig 3: Removing & Installing Wheel Hub (Press-In Bearing)

Courtesy of AUDI OF AMERICA, INC.

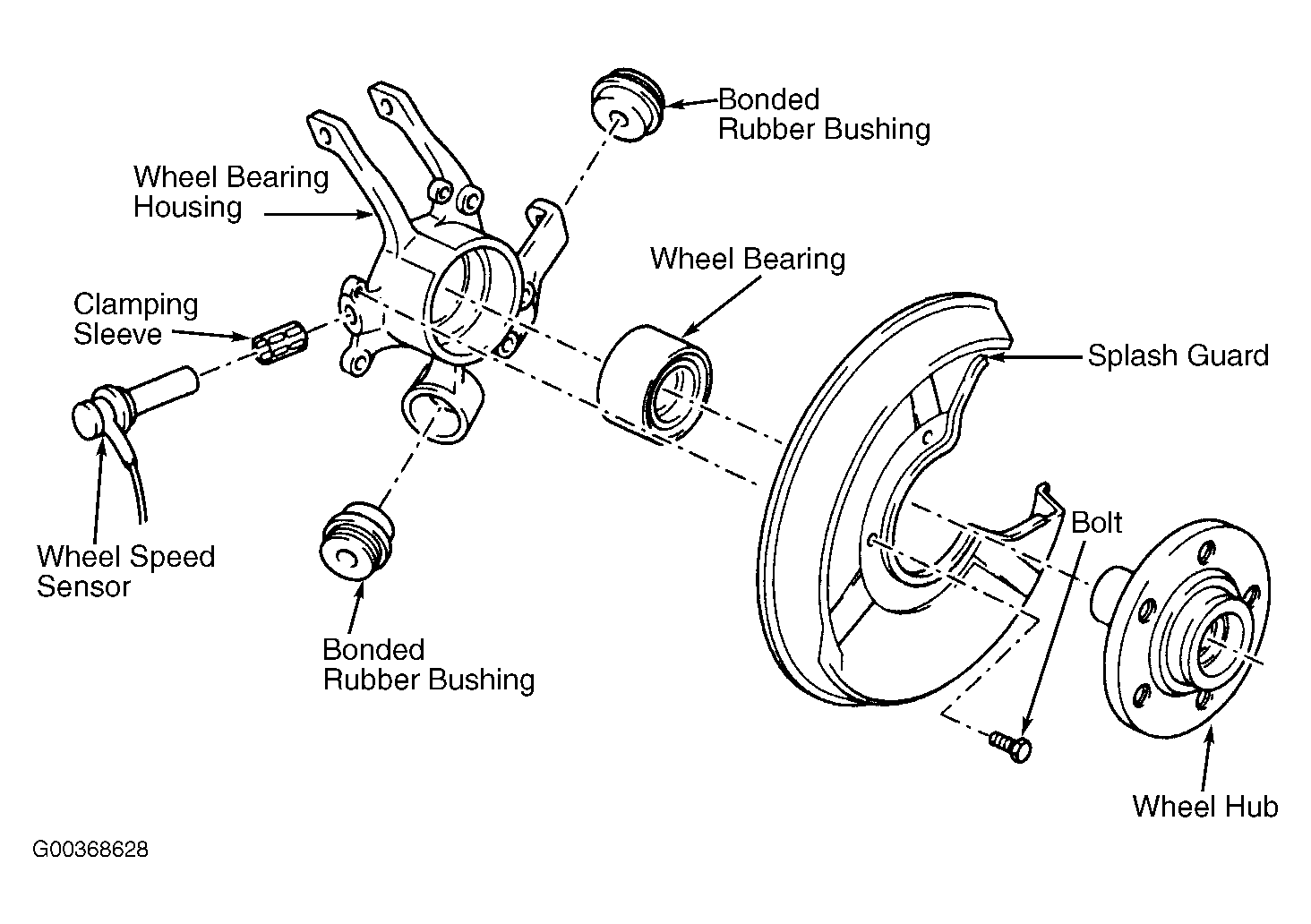

Fig 4: Exploded View Of Wheel Bearing Housing (Press-In Bearing)

Courtesy of AUDI OF AMERICA, INC.
