Wheel Bearing (Bolt-In)

Remove wheel bearing housing. See WHEEL BEARING HOUSING .
Clamp wheel bearing housing in vise. Remove 4 spherical head bolts. See Fig 3 . Remove bearing with hub assembly from housing. Replace wheel hub as illustrated. See Fig 1 and Fig 2 .

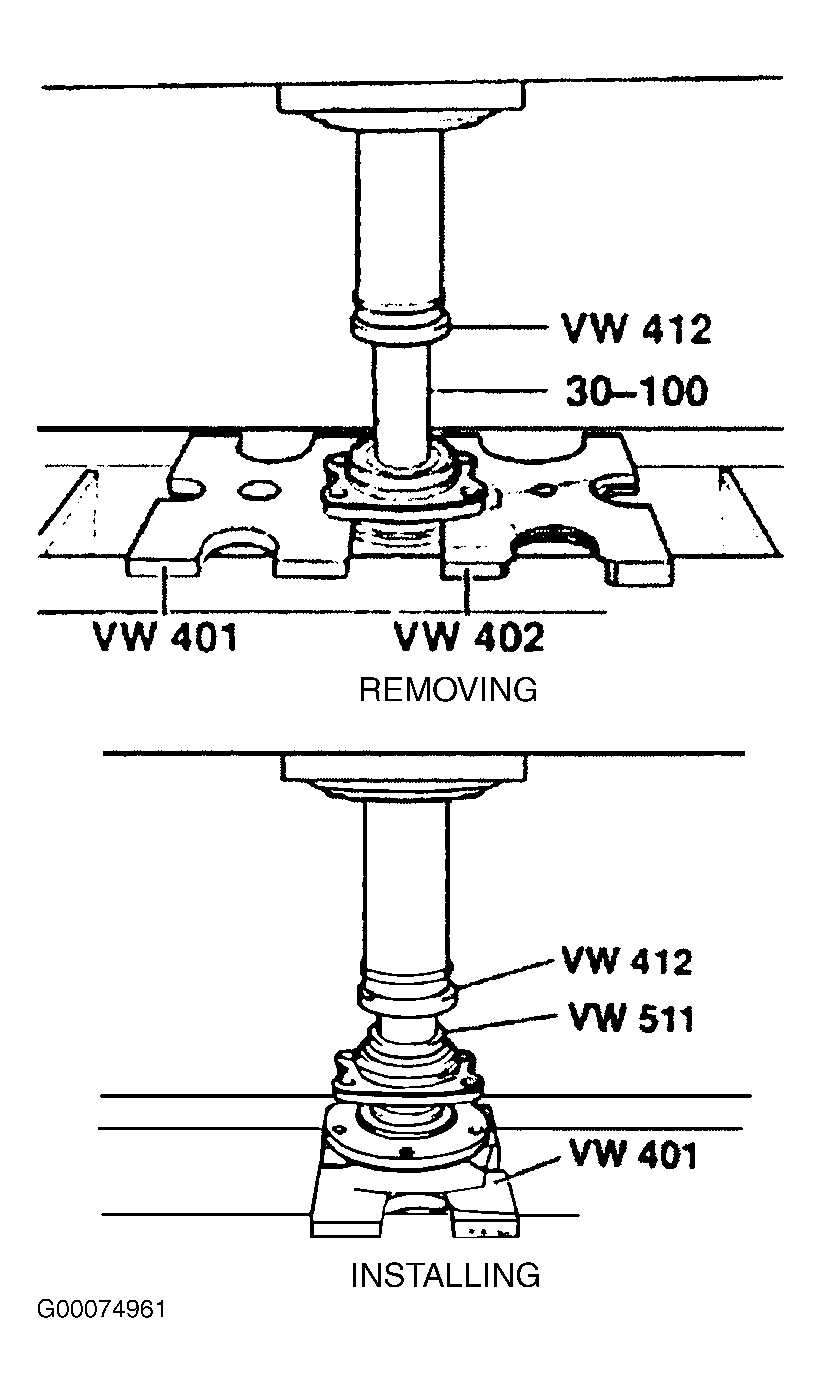

Fig 1: Removing & Installing Wheel Hub (Bolt-In)

Courtesy of AUDI OF AMERICA, INC.

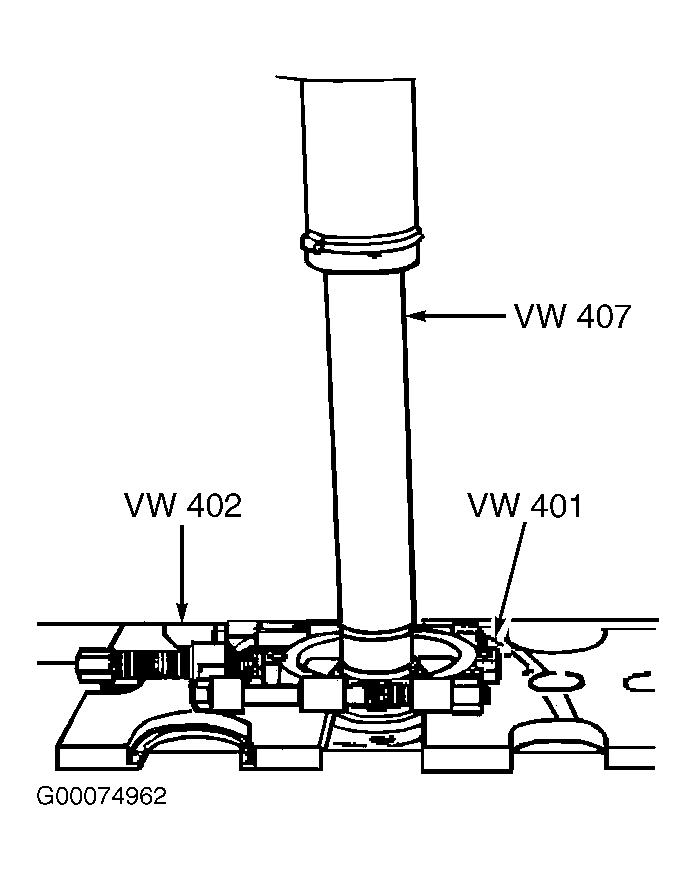

Fig 2: Removing Inner Bearing Race (Bolt-In)

Courtesy of AUDI OF AMERICA, INC.

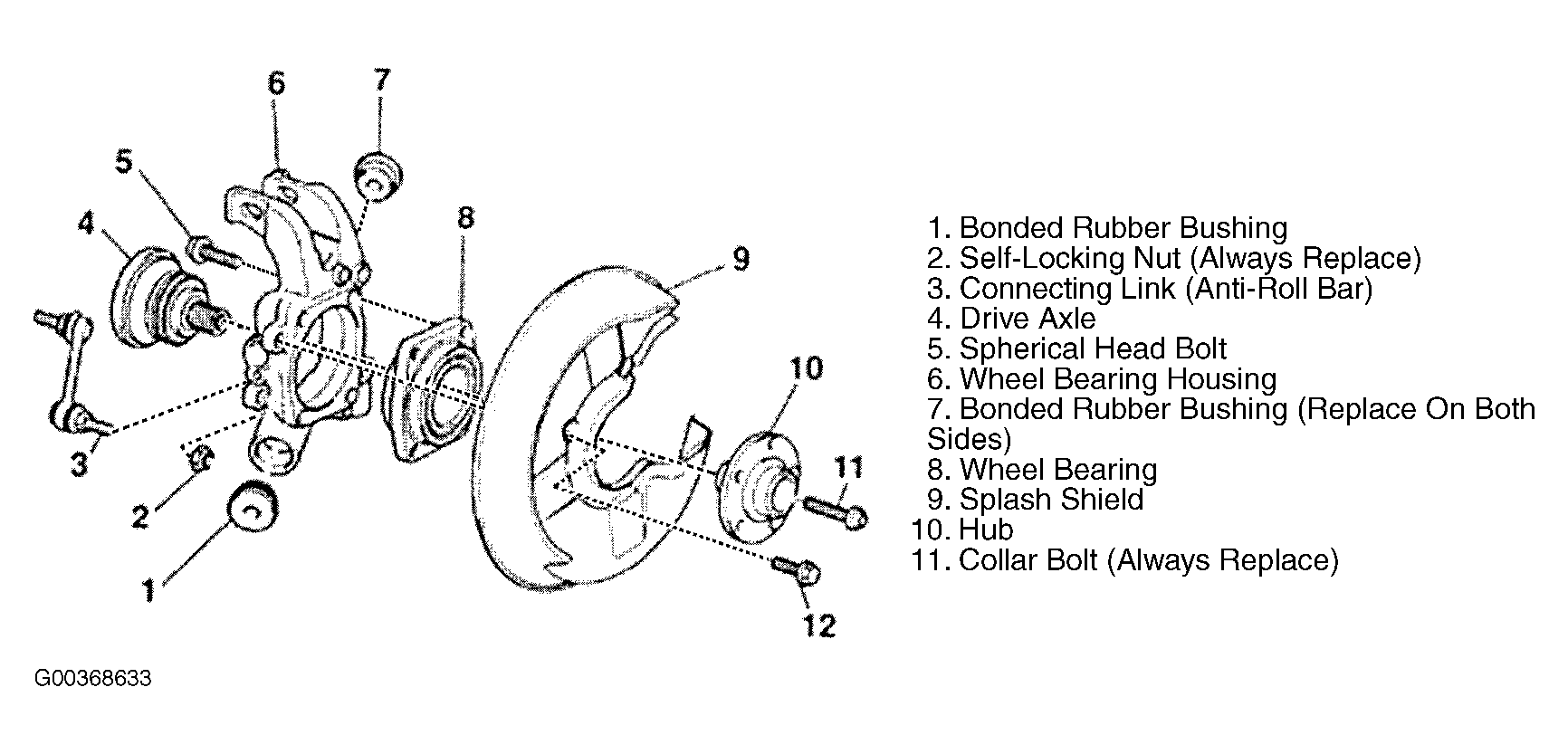

Fig 3: Exploded View Of Wheel Bearing Housing (Bolt-In Bearing)

Courtesy of AUDI OF AMERICA, INC.
