Notes
Trapezoidal Link & Bushings: Notes
NOTE:
Trapezoidal link is also referred to as lower control arm.

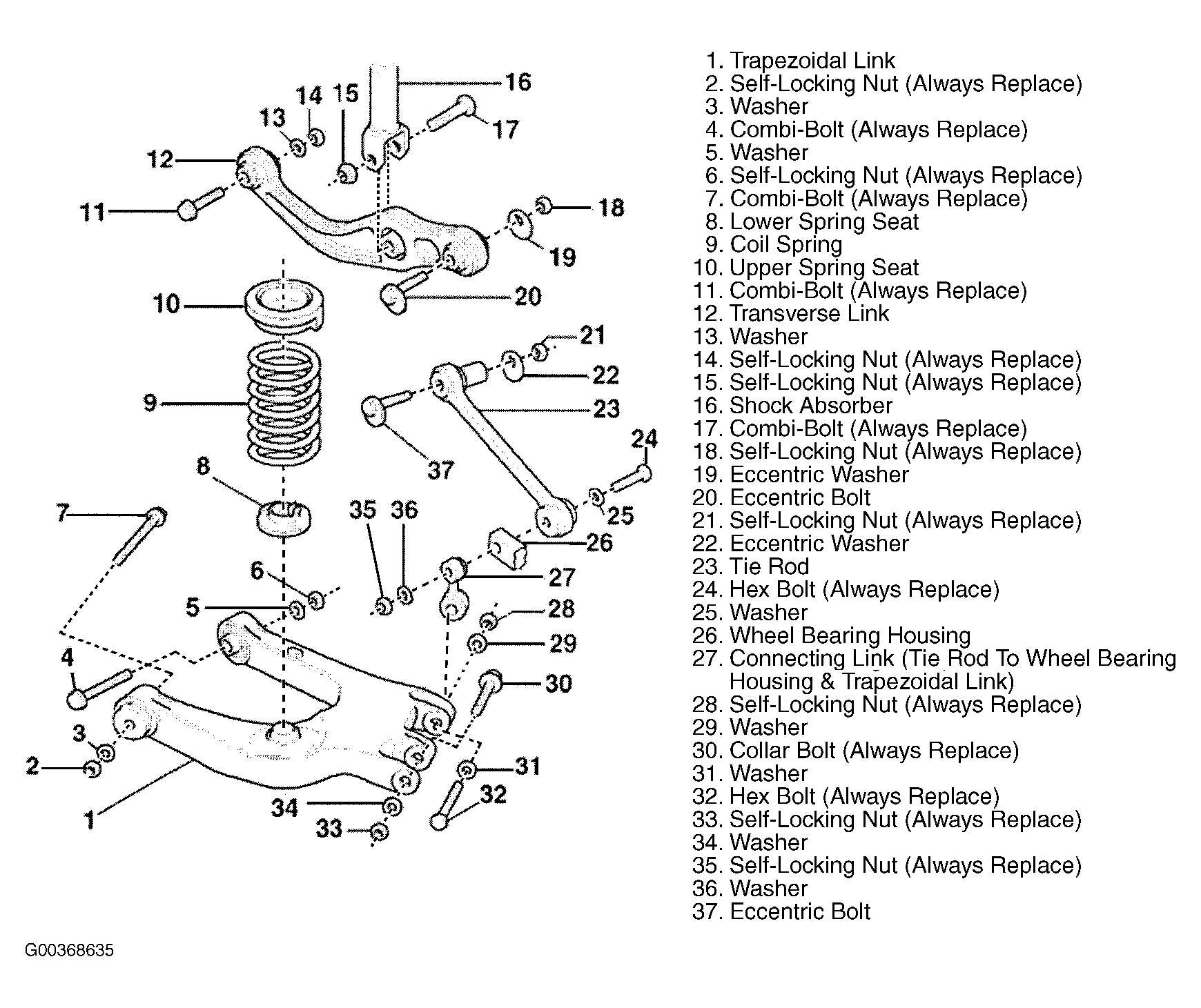

Fig 1: Exploded View Of Trapezoidal Link Assembly
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
