Disassembly (Front Inner Bushing Halves)

Flare bushing collar to allow installation of tool. Install Tools 3249 and 3292 between bushing and trapezoidal link. See Fig 1 . Tighten tool to force bushing slightly from trapezoidal link. Insert Tool 3292/1 into bushing. Attach crossbar to tool. See Fig 2 . Tighten spindle in crossbar to pull out bushing half. Remove puller and tool. Install tools to remaining bushing half and trapezoidal link. See Fig 3 . Tighten tool to remove remaining bushing half.

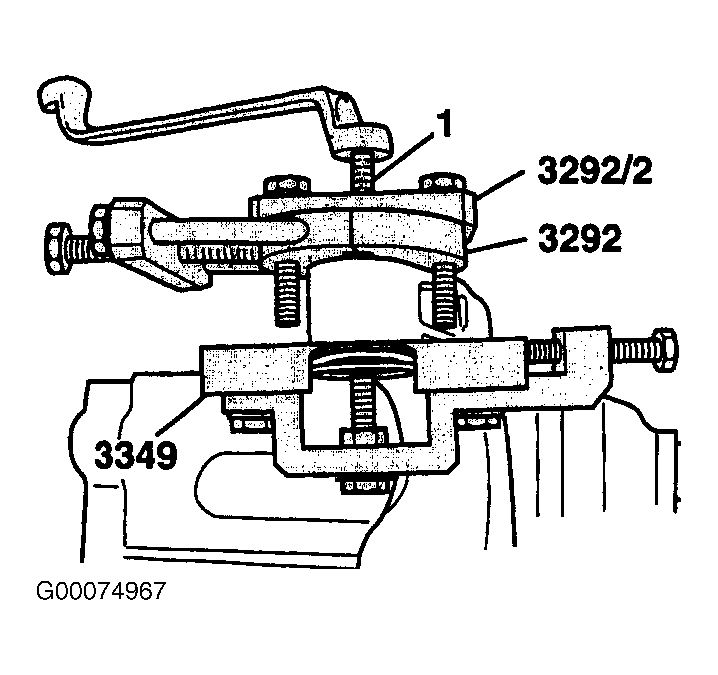

Fig 1: Installing Tools On Trapezoidal Link Front Bushing

Courtesy of AUDI OF AMERICA, INC.

Fig 2: Removing First Bushing Half

Courtesy of AUDI OF AMERICA, INC.

Fig 3: Removing Second Bushing Half

Courtesy of AUDI OF AMERICA, INC.
