Disassembly & Reassembly (Rear Inner Bushing)

Using press and adapters, press out and in rear trapezoidal link bushing. See Fig 1 .

NOTE: Always replace bushings on both sides of the vehicle.

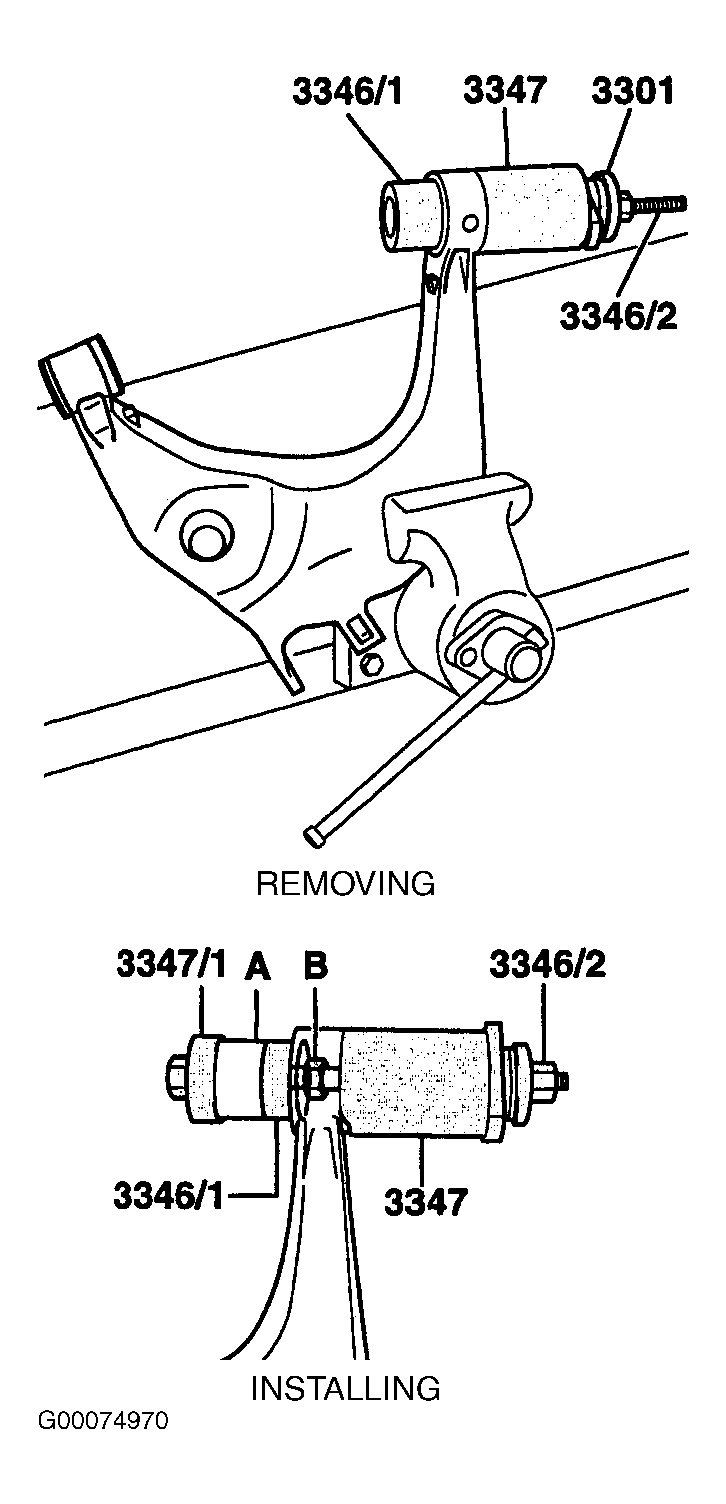

Fig 1: Removing & Installing Trapezoidal Link Rear Bushing

Courtesy of AUDI OF AMERICA, INC.
