Shock Absorber: Disassembly

NOTE: Shock absorbers are maintenance-free, shock absorber oil cannot be refilled.

To disassemble and assemble shock absorber, refer to figure. See Fig 1 . Always use NEW piston rod nut.

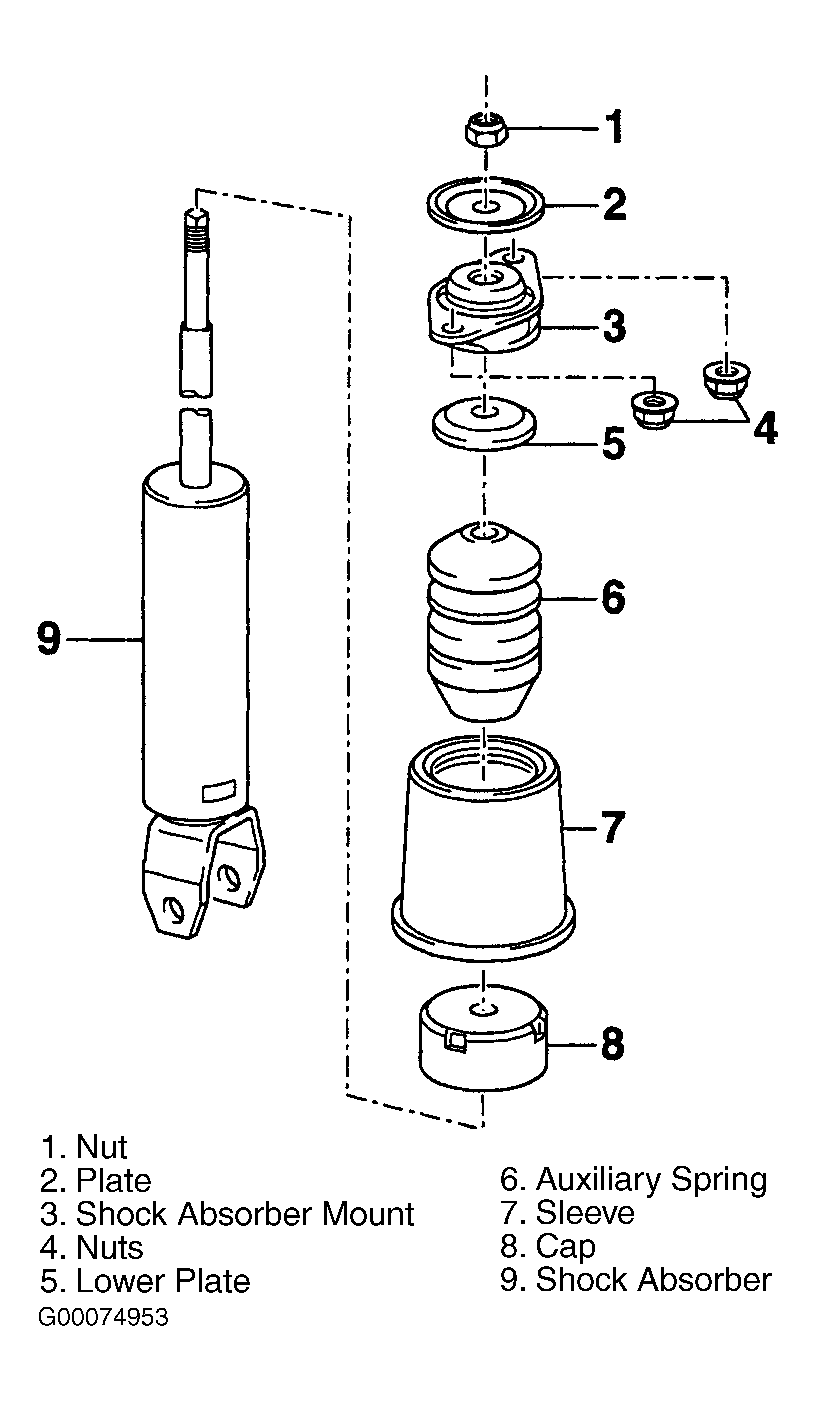

Fig 1: Exploded View Of Shock Absorber

Courtesy of AUDI OF AMERICA, INC.
