Rear SUBFRAME (AWD): Notes

NOTE: Always replace subframe bolts and washers.

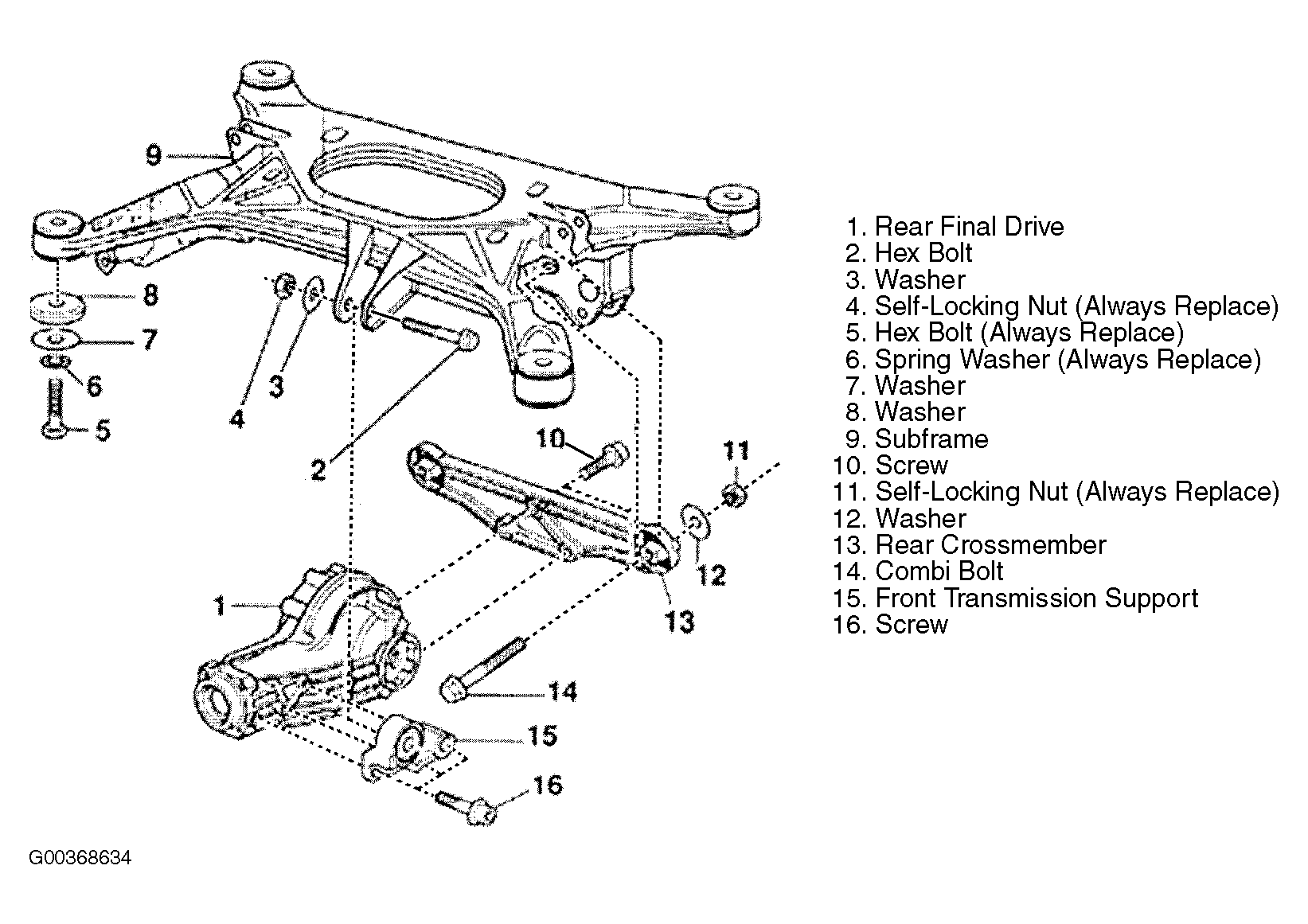

Fig 1: Exploded View Of Rear Subframe & Final Drive Assembly

G00368634

Courtesy of AUDI OF AMERICA, INC.
