Bushing Removal

To remove bushing, assemble tool on bushing. See Fig 1 . Lube tool nut and washers. Tighten nut to remove bushing.

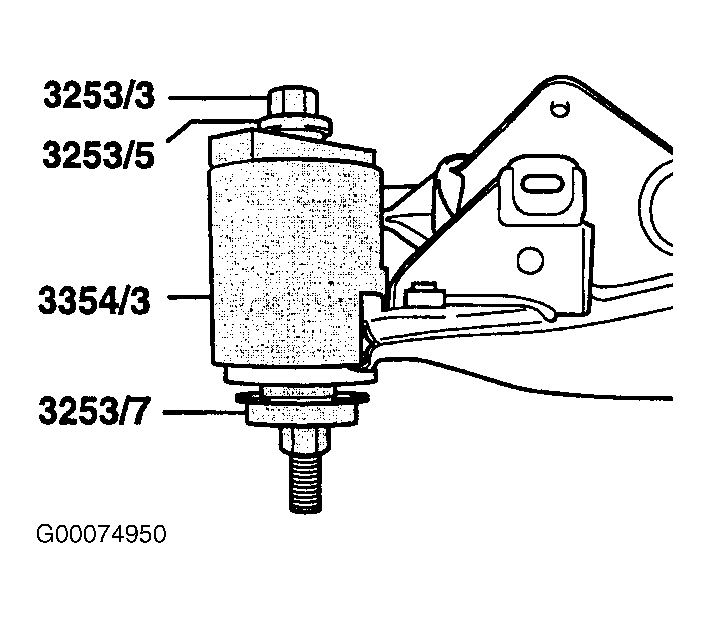

Fig 1: Removing Subframe Bushing
G00074950Courtesy of AUDI OF AMERICA, INC.
