Headlight Range Control
NOTE:
To avoid damage, use a 10 mm wrench with a thickness of .15" (4 mm) or less to hold stud when tightening sensor arm-to-linkage nut.

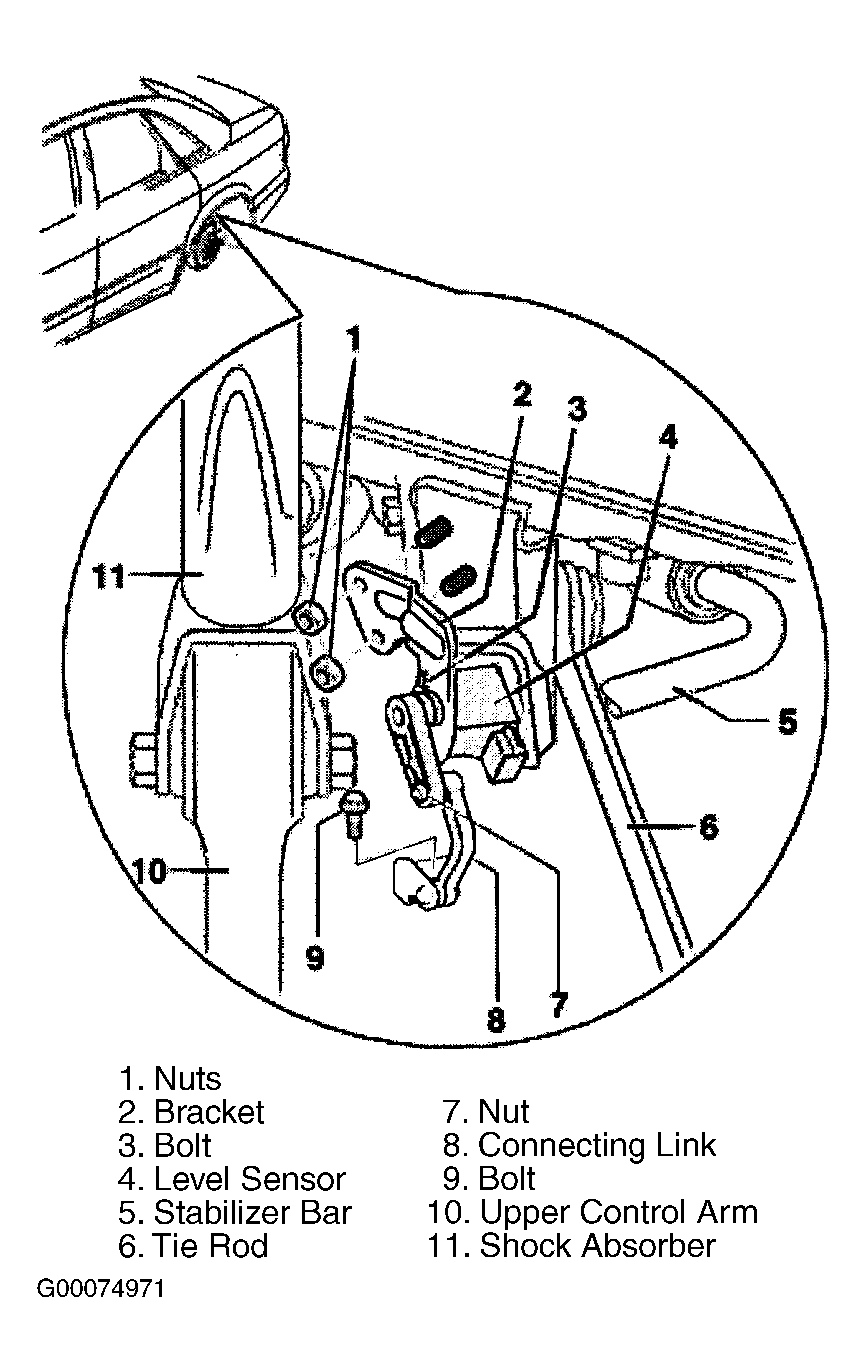

Connecting link for level sensor must be removed from trapezoidal link before removing rear axle components (e.g. trapezoidal link, wheel bearing housing, shock absorber). See Fig 1 . When attaching the connecting link to the level sensor, use an open-ended wrench (wrench size 10) that is 4 mm thick to avoid damaging the gasket.
