Coil Spring: Removal

  1. Raise and support vehicle. Remove wheel. Remove splash shield bolts and shield.
  2. Install Spring Tensioner (1752/1) with mounting tool (1752/3). See Fig 1 . Compress and remove coil spring.

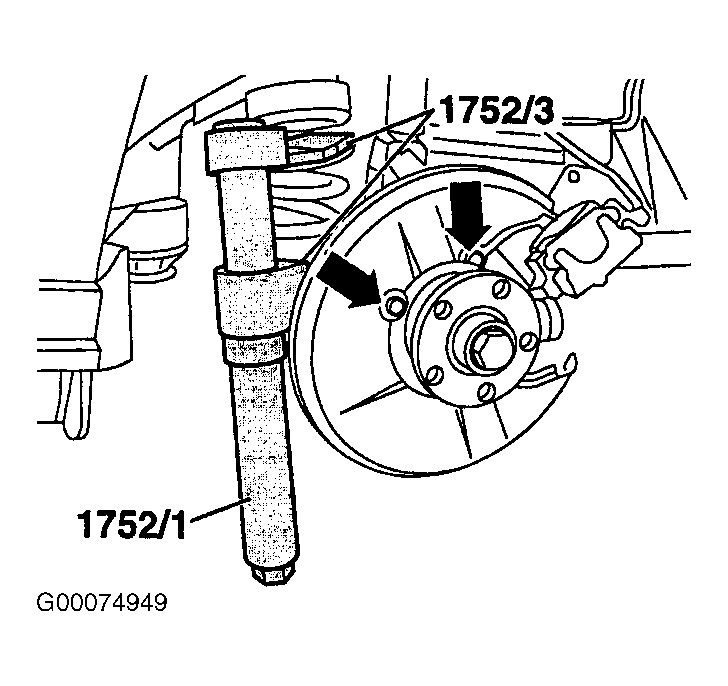

    Fig 1: Compressing Coil Spring
    G00074949Courtesy of AUDI OF AMERICA, INC.
