Checking wiring to 8-pin connector for multi-function switch

WARNING: This page is about a different variant/trim than selected.

Remove spring-clip lock -2- from harness/multi-function switch connector.

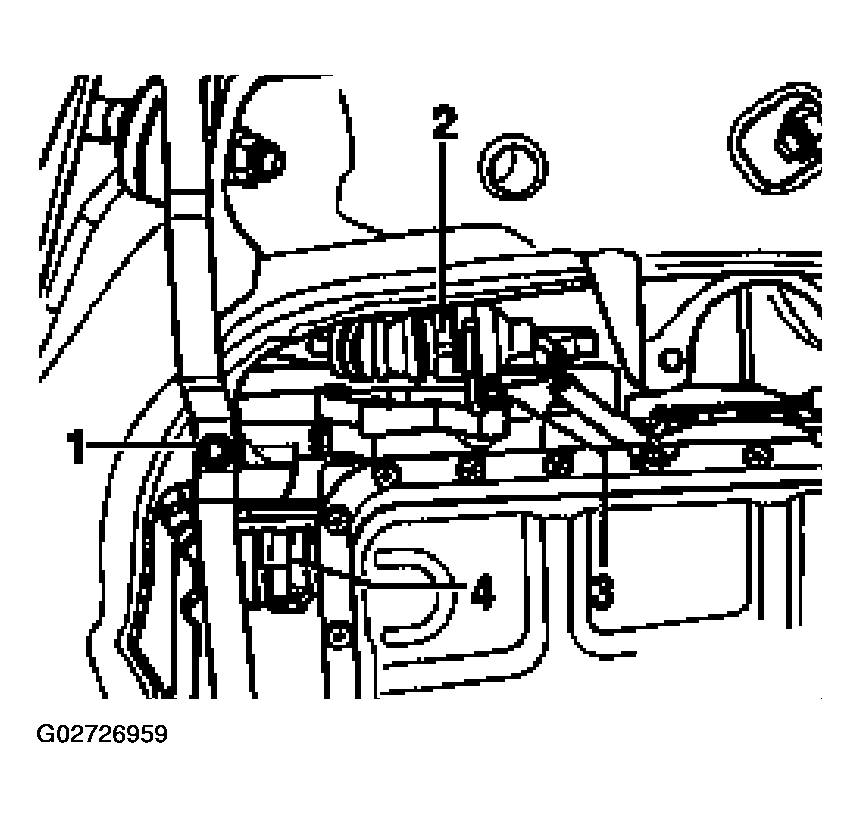

Fig 1: Removing Spring-Clip Lock -2- From Harness/Multi-Function Switch Connector
Check wiring connections for continuity (using multimeter) between terminals of 8-pin connector and sockets of test box VAG 1598. For specifications, see Fig 3 .

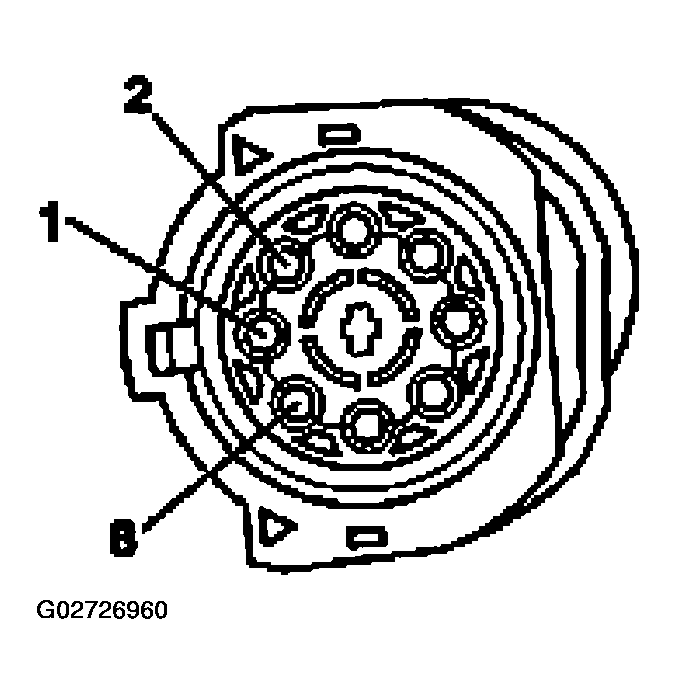

Fig 2: Identifying Terminals Of Multi-Function Switch 8-Pin Connector

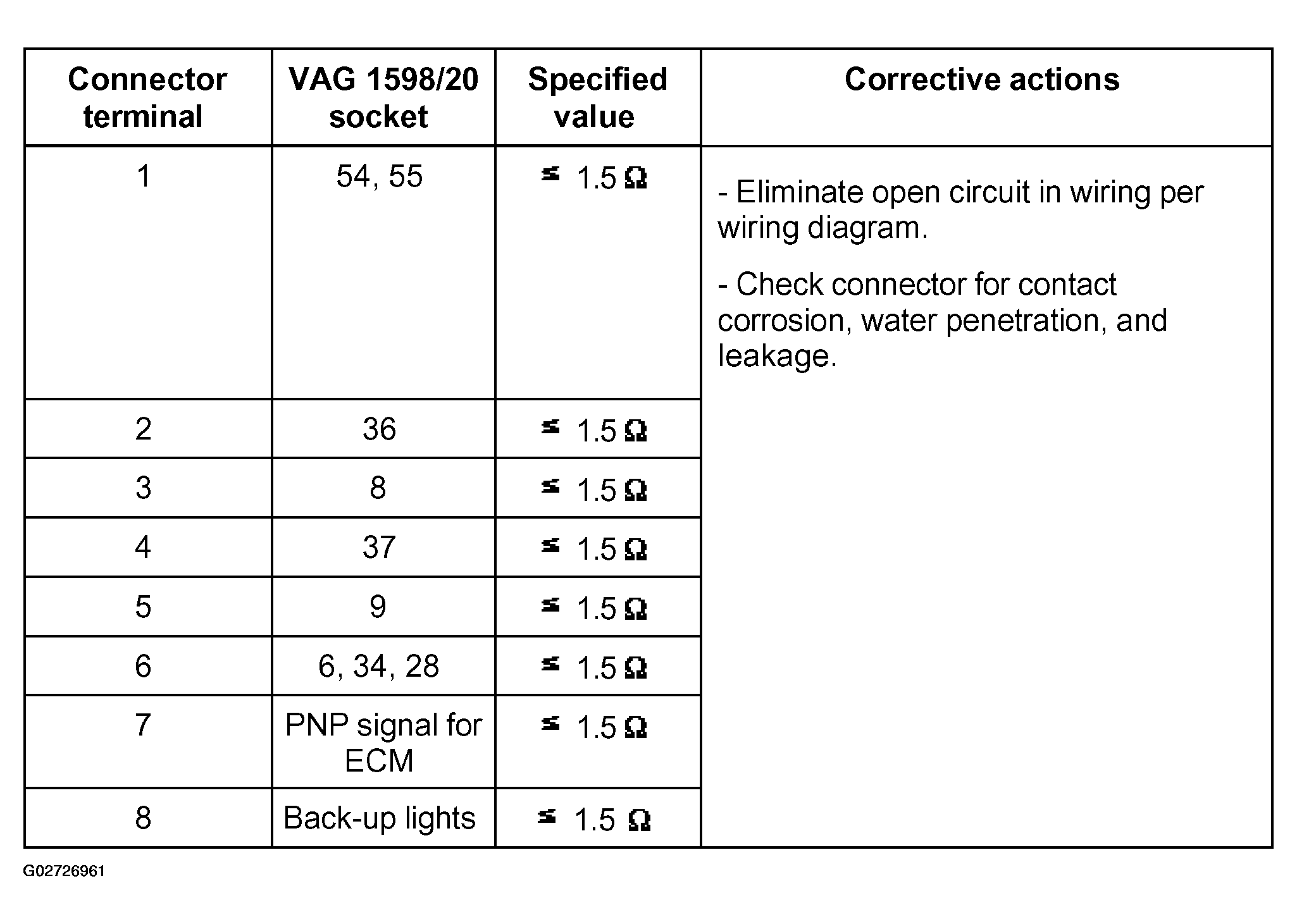

Fig 3: Multi-Function Switch 8-Pin Connector Terminals Continuity Chart

NOTE: If this test does not result in deviations from specified values, the multi-function switch -F125- must be replaced. See TRANSAXLE RANGE SWITCH .
