Electrical testing: Testing

WARNING: This page is about a different variant/trim than selected.

Conduct steps recommended in DTC table only.
Switch ignition off, remove multi-pin connector from TCM -J217- (located in right side of plenum, see ELECTRICAL AND ELECTRONIC COMPONENTS, LOCATIONS ) and connect test box VAG 1598/20 to wiring harness connector.

If measured values deviate from specified values:

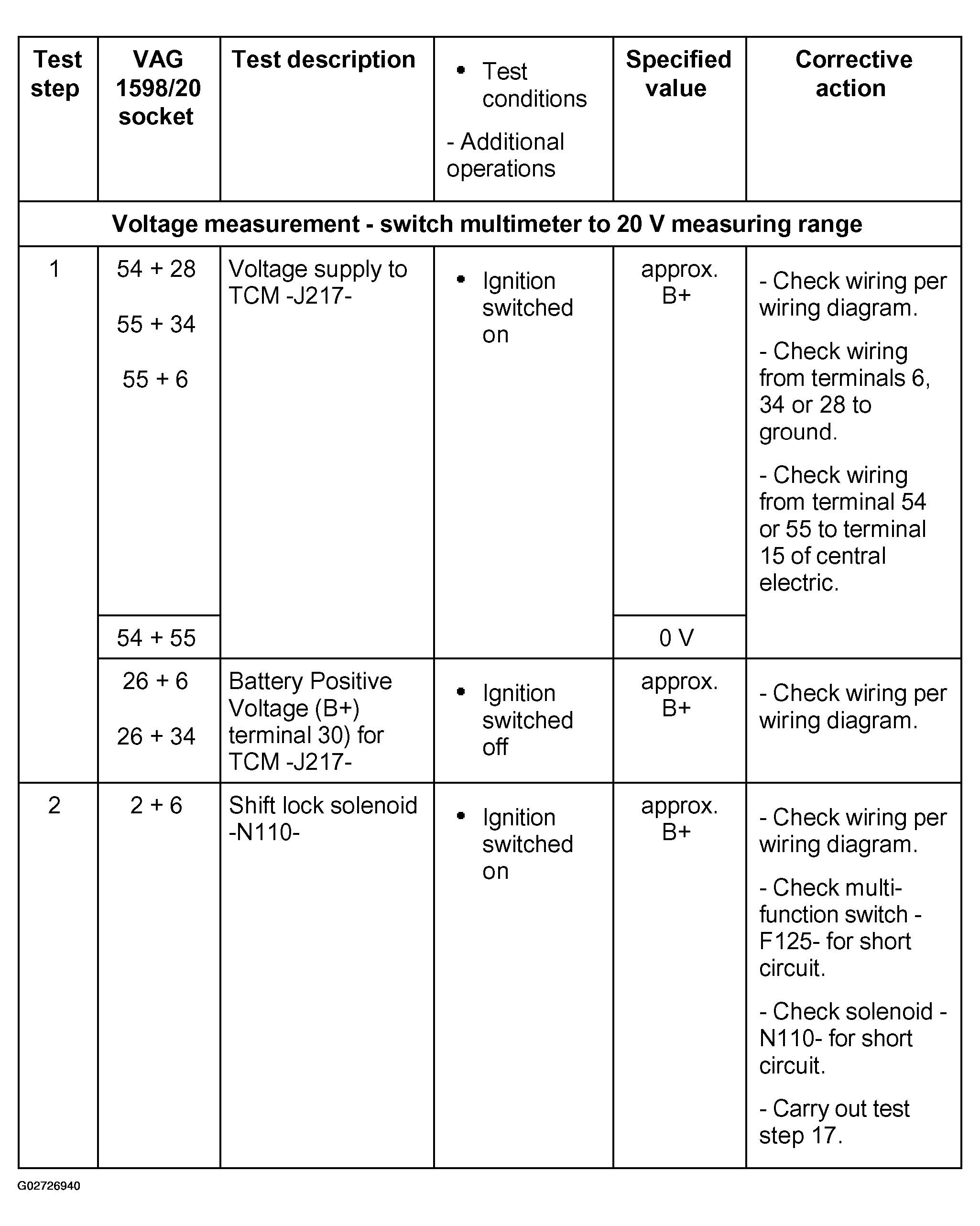

Carry out all corrective actions listed on right side of test table. See Figure .

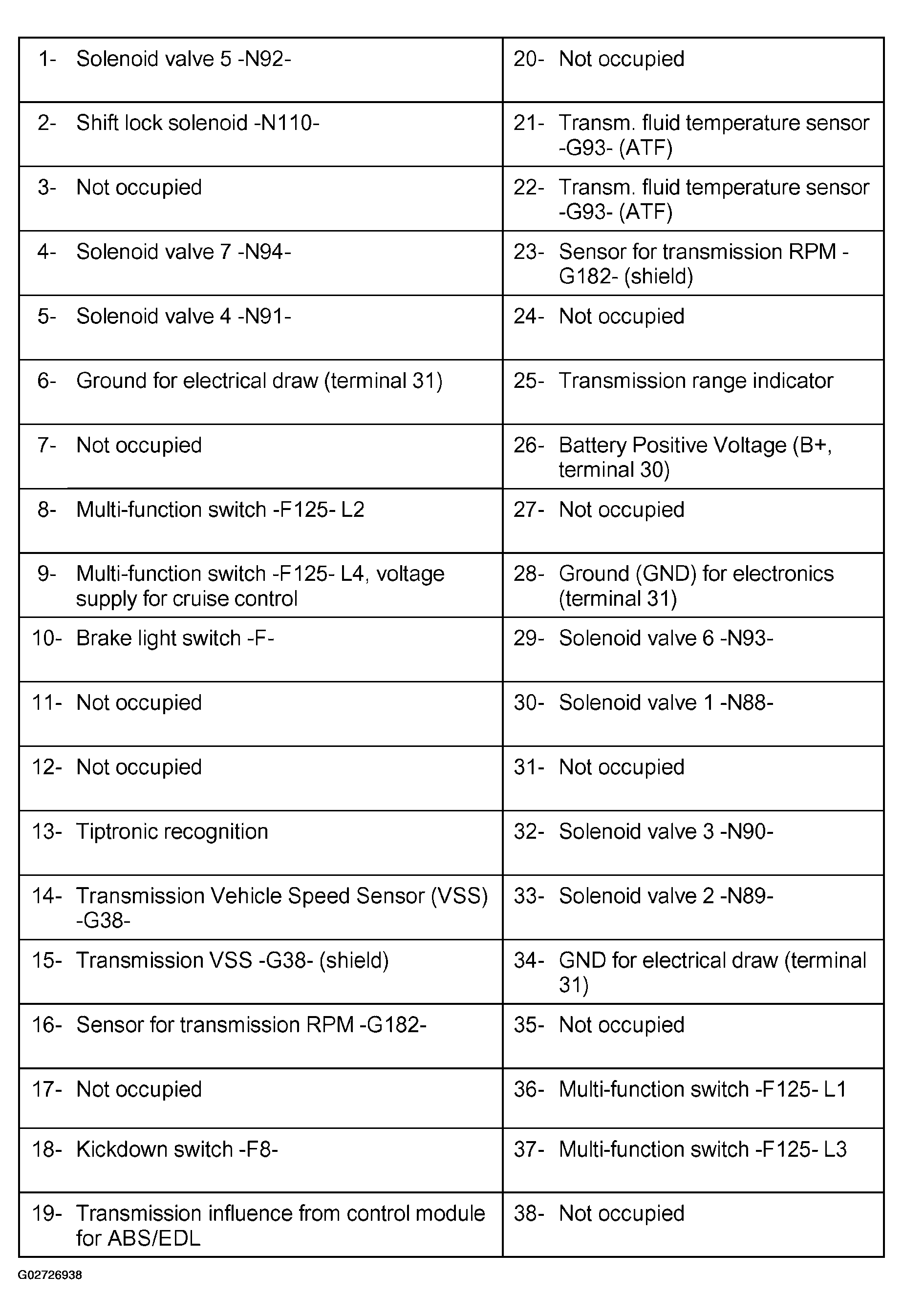

Fig 1: TCM -J217- 88-Pin Connector Pin Identification (Socket Number On VAG 1598/20) - 1 Of 2

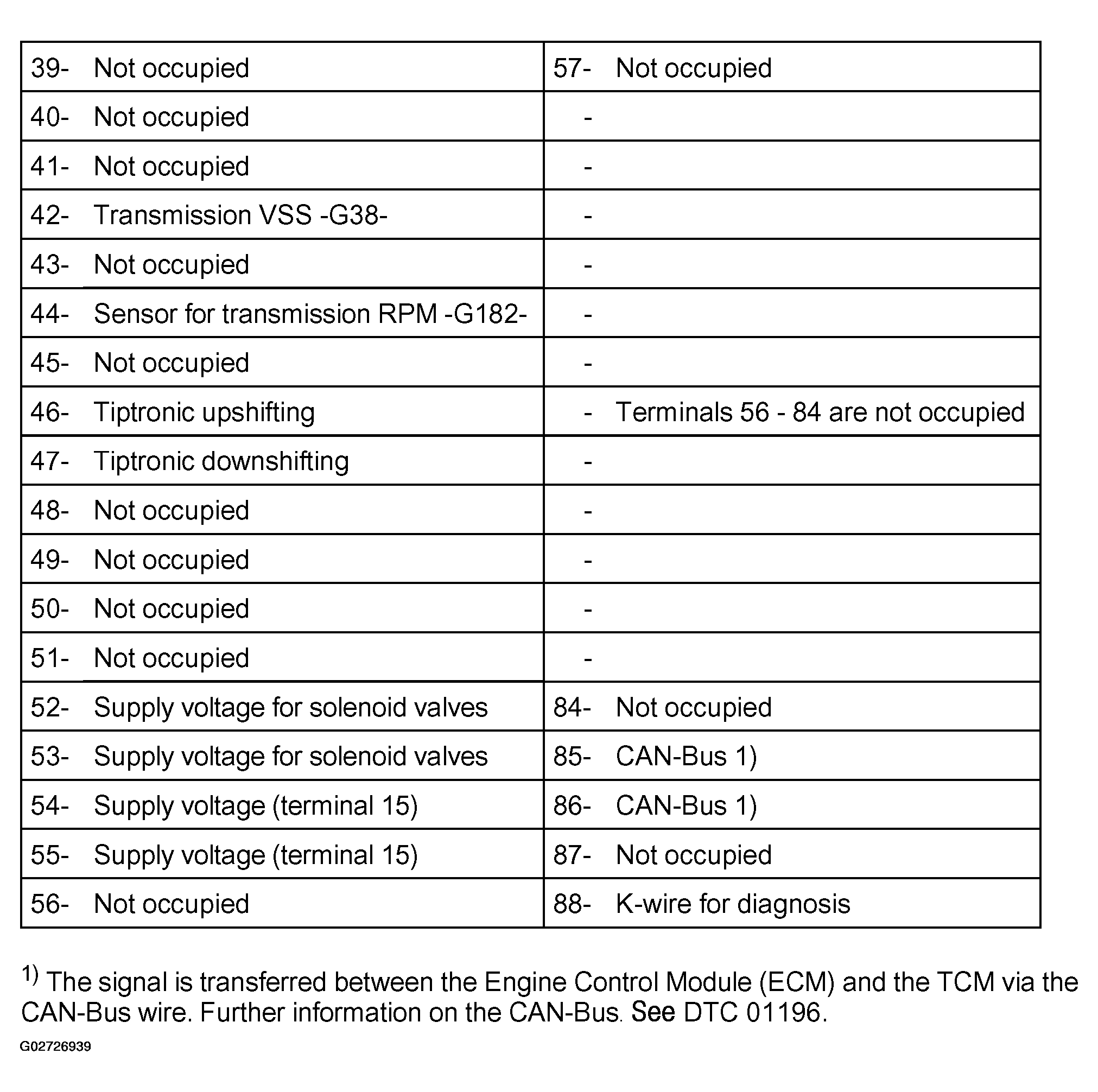

Fig 2: TCM -J217- 88-Pin Connector Pin Identification (Socket Number On VAG 1598/20) - 2 Of 2
