Switch for front seat heater, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Remove radio.
See RADIO SYSTEM .

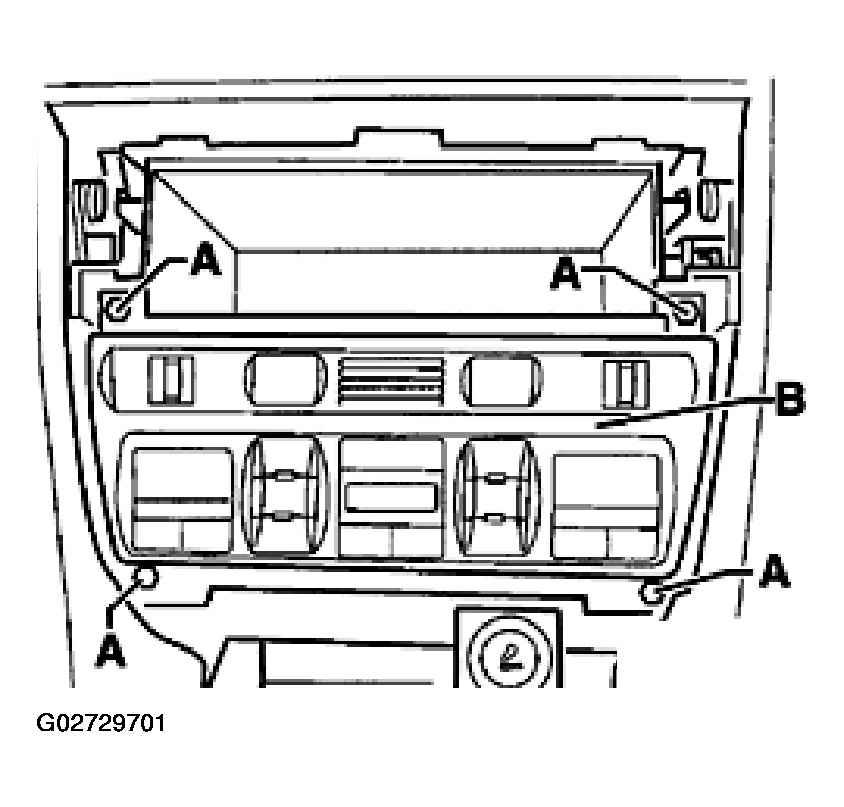

Remove Hex head screws -A-.
Remove control panel and display unit -B-.

Fig 1: Removing Hex Head Screws And Display Unit

Courtesy of AUDI OF AMERICA, INC.

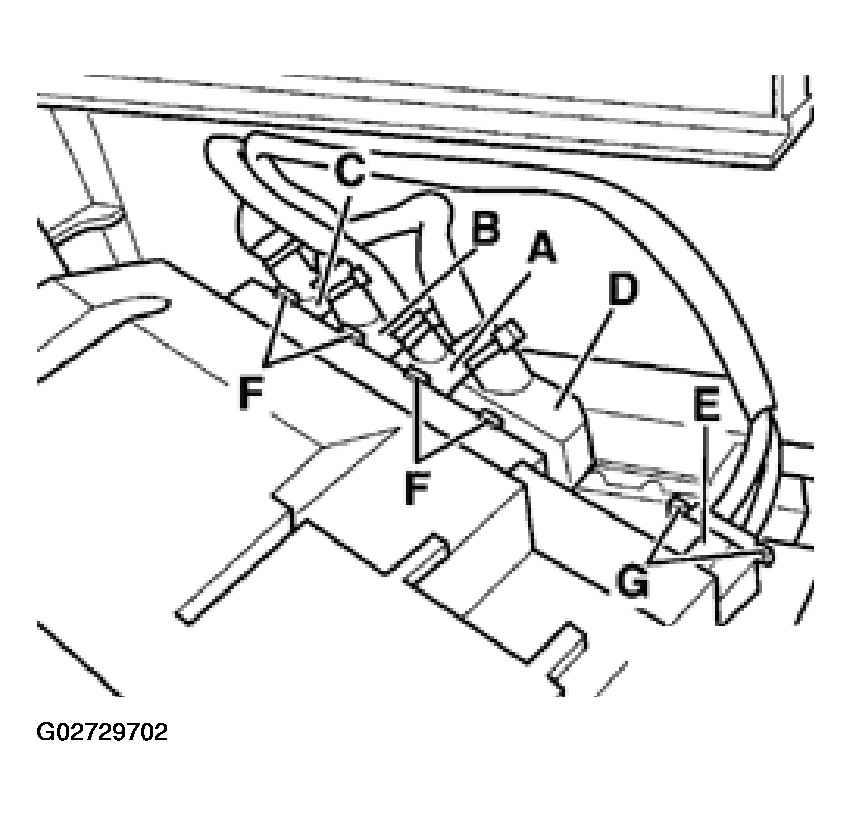

Push back connector locks -F- and disconnect harness connectors -A- to -D-.
Push back connector locks -G- and disconnect harness connector -E- (for the heated rear window).

Fig 2: Pushing Back Connector Locks & Disconnecting Harness Connectors

Courtesy of AUDI OF AMERICA, INC.

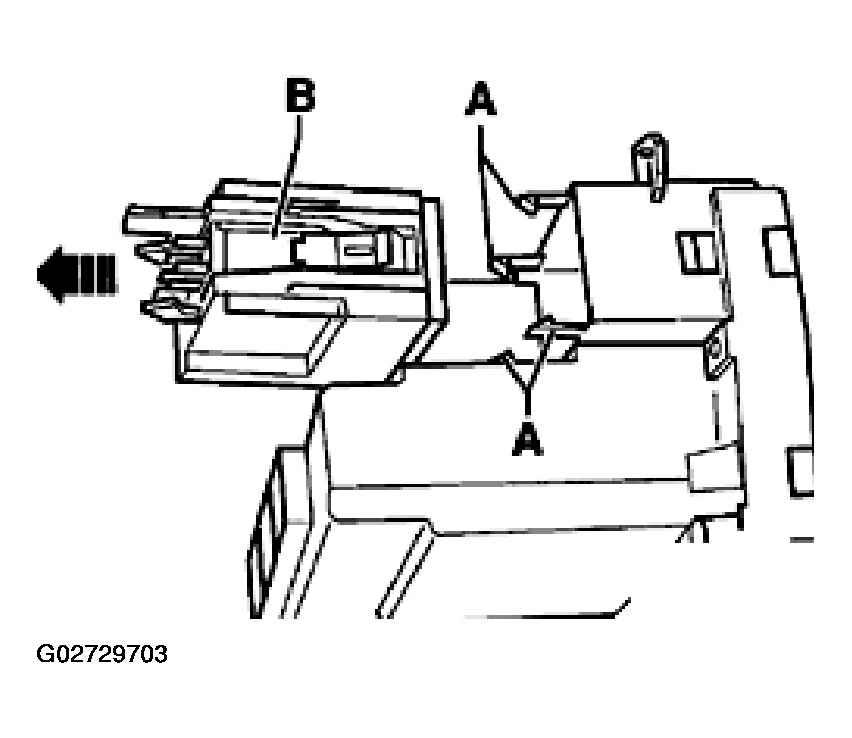

To remove the switches for the seat heaters, push the locks -A- back and pull out the switch -B- from the A/C control head.

Fig 3: Pushing Locks Back & Pulling Out Switch From A/C Control Head

Courtesy of AUDI OF AMERICA, INC.
