Tail light in side panel, removing and installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
- Open storage shelf in luggage compartment on relevant side.
- Open tail light cover and remove.
- Remove luggage compartment trim on appropriate side.

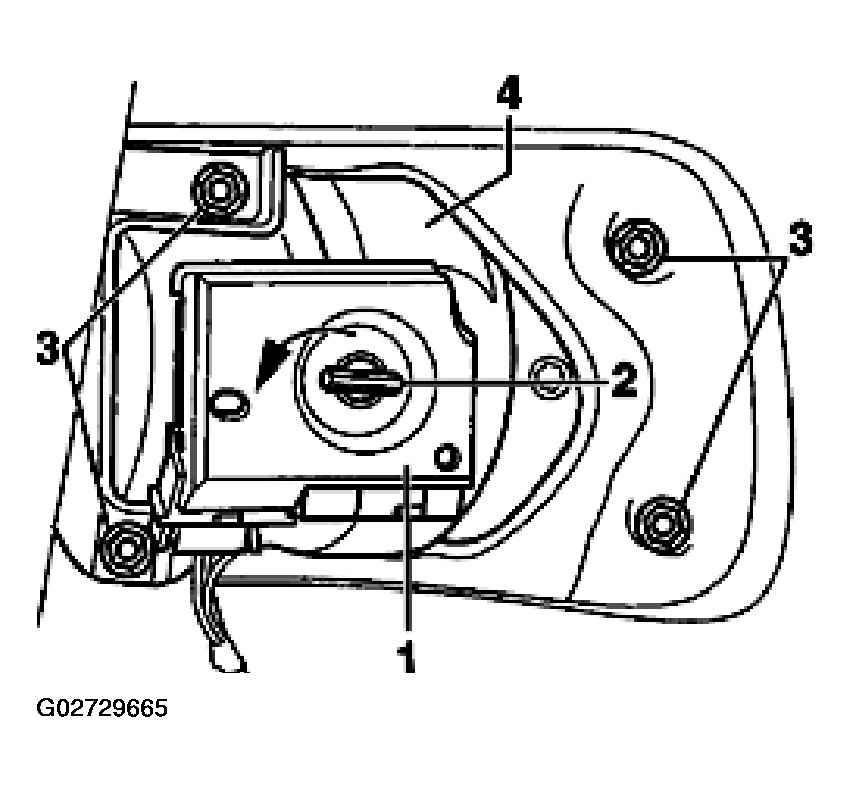

- Turn knob -2- at bulb carrier -1- counter clockwise and remove.
- Remove four hex nuts (4x, size in mm: 8) -3- and remove tail light -4- from vehicle on outside.
