Tail light in rear lid, removing and installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
- Open carpet trim in rear lid on appropriate side.
- Turn individual bulb sockets -1-, -2-, -3- counter clockwise and remove.

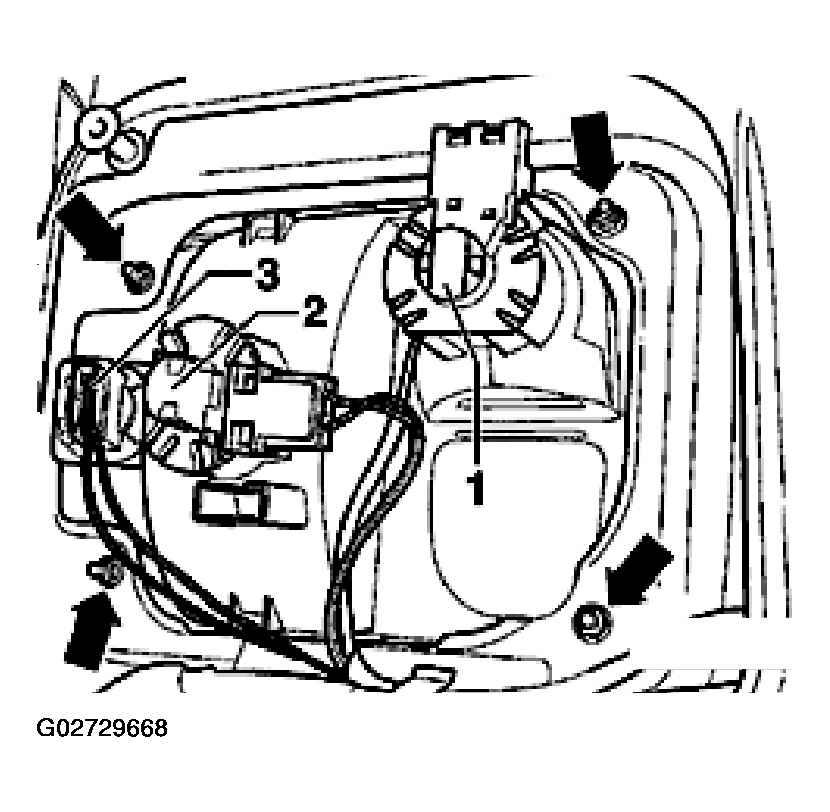

NOTE: Illustration depicts the left tail light in the rear lid. Rear lid lock must also be removed for right rear lid tail light.
- Remove the four mounting nuts and remove housing.
- Remove four mounting nuts (size in mm: 8) (arrows) and remove housing.
