High mount brake light, removing and installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

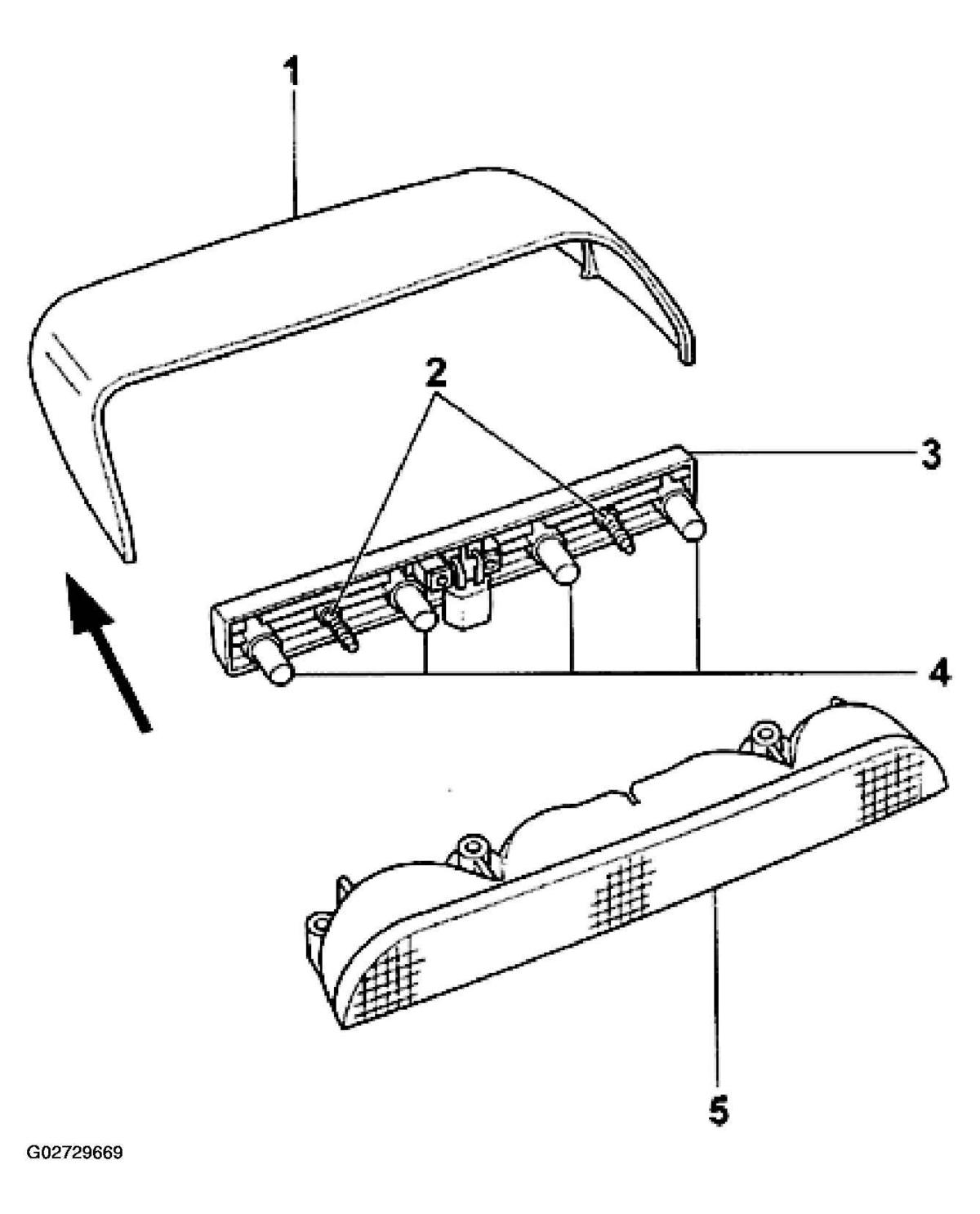

- Remove housing cover -1- by hand in direction of arrow. See Fig 1.
- Remove Phillips-head screws -2- and remove bulb carrier -3- in direction of arrow.
Bulbs -4- (4 x 12 V, 5W) are inserted in bulb carrier -3-. See Fig 1.
The 2-pin harness connector for the brake light is located at the bulb carrier.
The lens housing -5- is secured to the rear parcel shelf by Phillips-head screws located on its underside and attached from within the luggage compartment.
