Igniter for gas discharge lamps -N195-, removing and installation: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Remove headlight. See HEADLIGHTS, REMOVING AND INSTALLING .
Release retaining clamps and mounting units and remove rubber seal
Remove headlight lens -1- by removing the six retaining clamps -15-. See Fig 1.
Remove ball head of adjusting motor -12- adjustment axle from ball head mount. See Fig 1.
Remove reflector -4-. Turn adjustment screws for vertical and horizontal adjustment enough that reflector can be removed.
Open housing cover -9- and remove connector at gas discharge lamp by turning counter clockwise. See Fig 1.
Remove both mounting bolts -14- and remove the igniter for gas discharge lamps -11-.

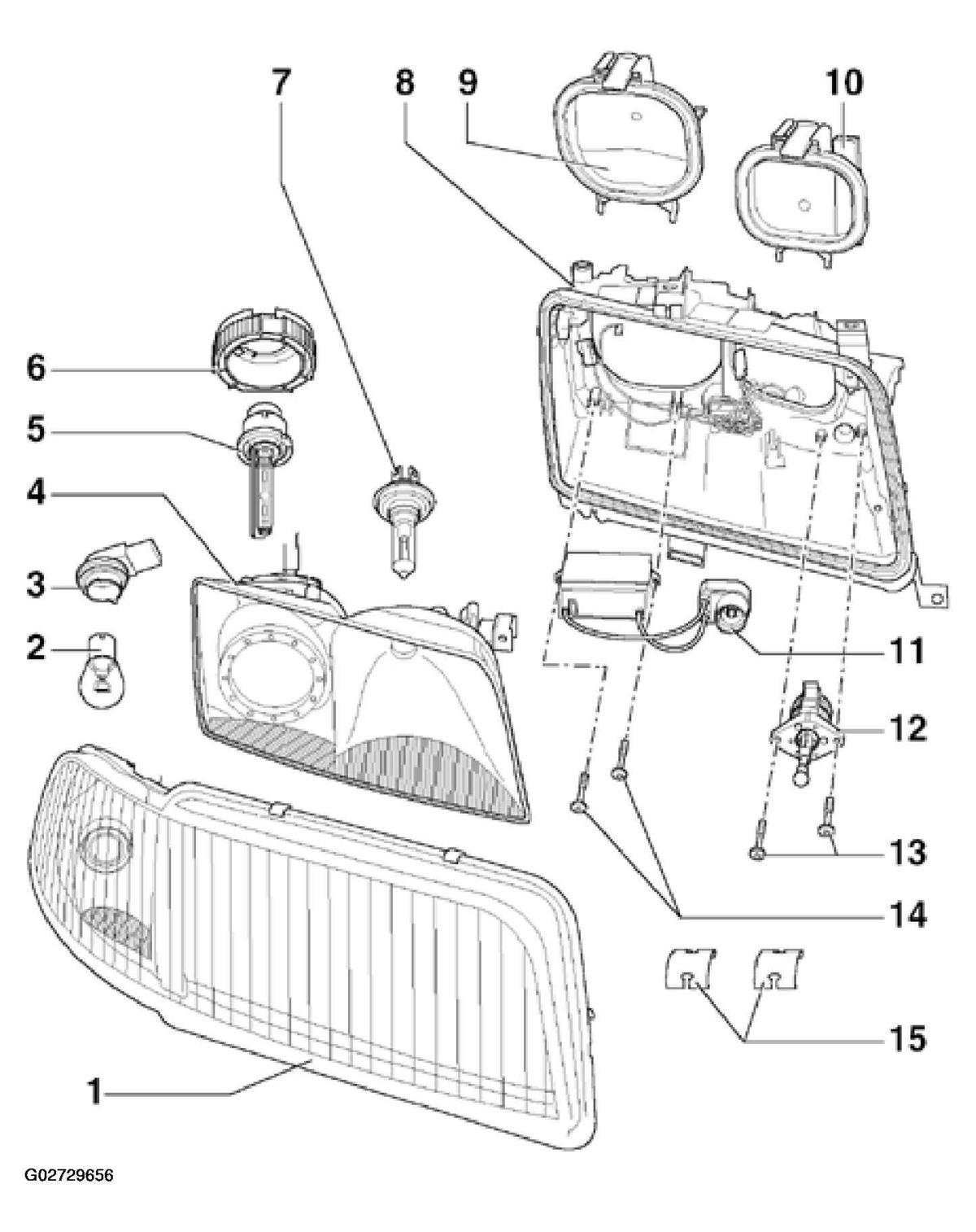

Fig 1: Exploded View Of High Intensity Gas Discharge (Xenon) Headlight Assembly

Courtesy of AUDI OF AMERICA, INC.
