Gas discharge (xenon) headlights with automatic headlight beam adjustment, general overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

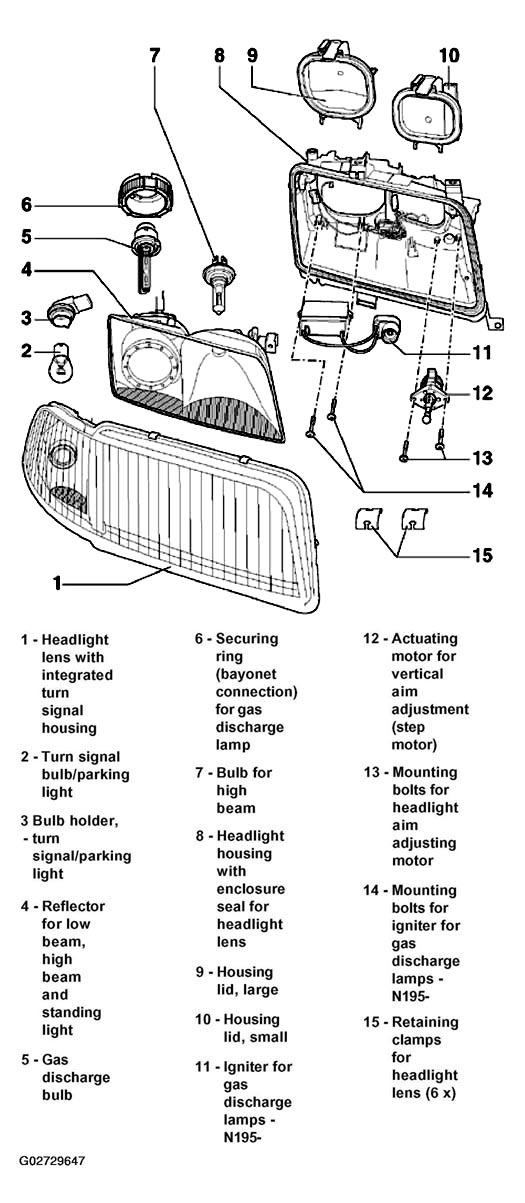

The following list refers to Fig 1.
- Headlight lens with integrated turn signal housing
- Turn signal bulb/parking light
- 12 V, 21/5 W orange
- Changing bulb. See REPLACING TURN SIGNAL BULB/PARKING LIGHT .
- Bulb holder, turn signal/parking light
- Reflector for low beam, high beam and standing light
- Gas discharge bulb
- 12 V, 35 W
- Changing bulb. See REPLACING LOW BEAM BULB (GAS DISCHARGE HEADLIGHT) .
- Securing ring (bayonet connection) for gas discharge lamp
- Bulb for high beam
- H1 - 12 V, 55 W
- Changing bulb. See REPLACING BULB FOR HIGH BEAM .
- Headlight housing with enclosure seal for headlight lens
- Housing lid, large
- Housing lid, small
- Igniter for gas discharge lamps -N195-
- Removing and installing. See IGNITER FOR GAS DISCHARGE LAMPS -N195-, REMOVING AND INSTALLATION .
- Actuating motor for vertical aim adjustment (step motor)
- Removing and installing. See ADJUSTING MOTOR FOR AUTOMATIC VERTICAL AIM CONTROL, HIGH INTENSITY GAS DISCHARGE (XENON) HEADLIGHT, REMOVING AND INSTALLING .
- Mounting bolts for headlight aim adjusting motor
- Mounting bolts for igniter for gas discharge lamps -N195-
- Retaining clamps for headlight lens (6 x)
