Adjusting motor for automatic vertical aim control, high intensity gas discharge (Xenon) headlight, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Remove headlight. See HEADLIGHTS, REMOVING AND INSTALLING .
Release retaining clamps and mounting units and remove rubber seal.
Remove headlight lens -1- by removing the six retaining clamps -15-. See Fig 1.
Remove ball head of adjusting motor -12- adjustment axle from ball head mount. See Fig 1.
Remove reflector -4-. Turn adjustment screws for vertical and horizontal adjustment enough that reflector can be removed. See Fig 1.
Disconnect electrical harness connector at adjusting motor for automatic vertical headlight aim control -12- and remove both mounting screws -13-.

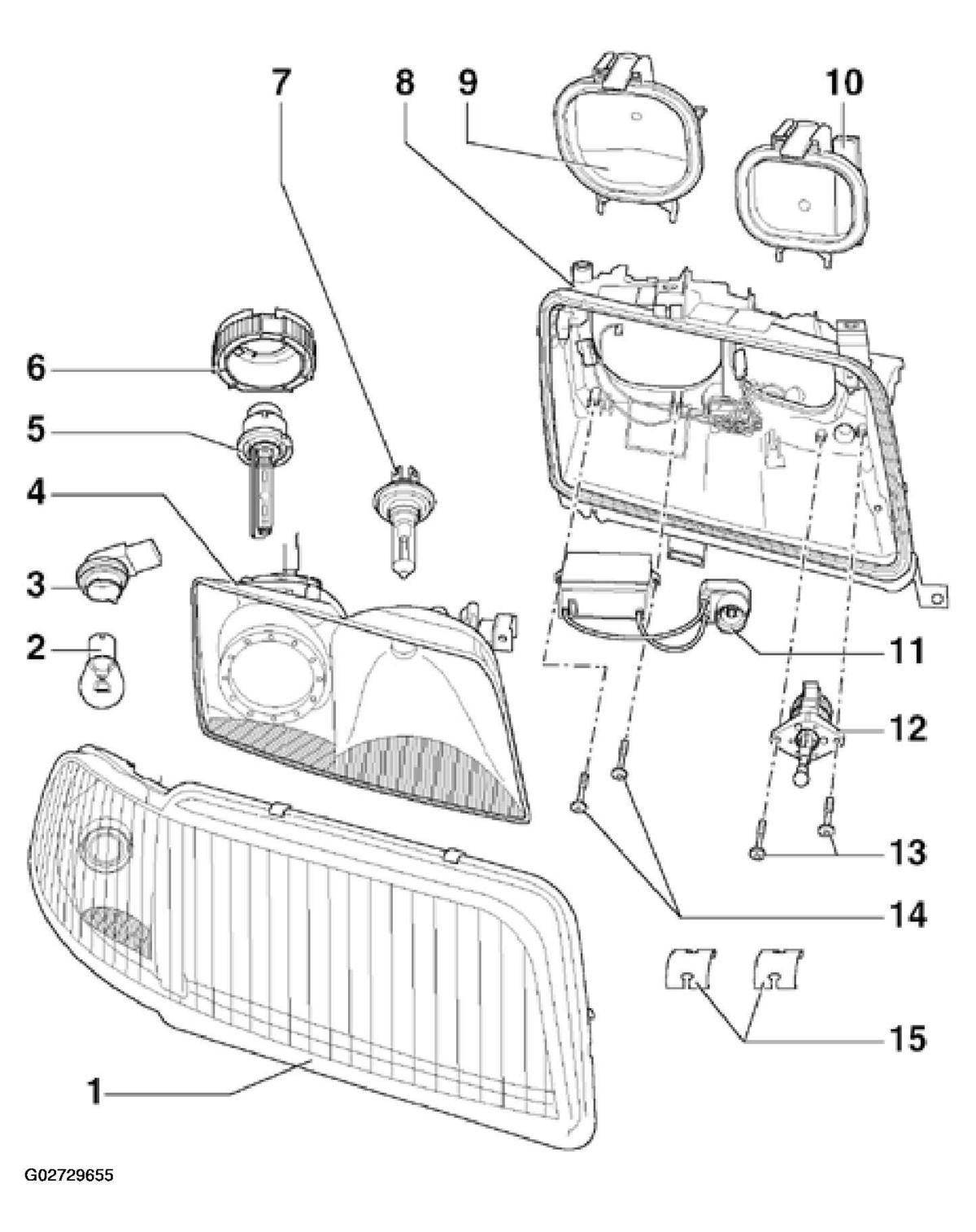

Fig 1: Exploded View Of High Intensity Gas Discharge (Xenon) Headlight Assembly
Courtesy of AUDI OF AMERICA, INC.
Remove adjusting motor for automatic vertical headlight aim control.
