Warning buzzer for parking -H15-, removing and installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

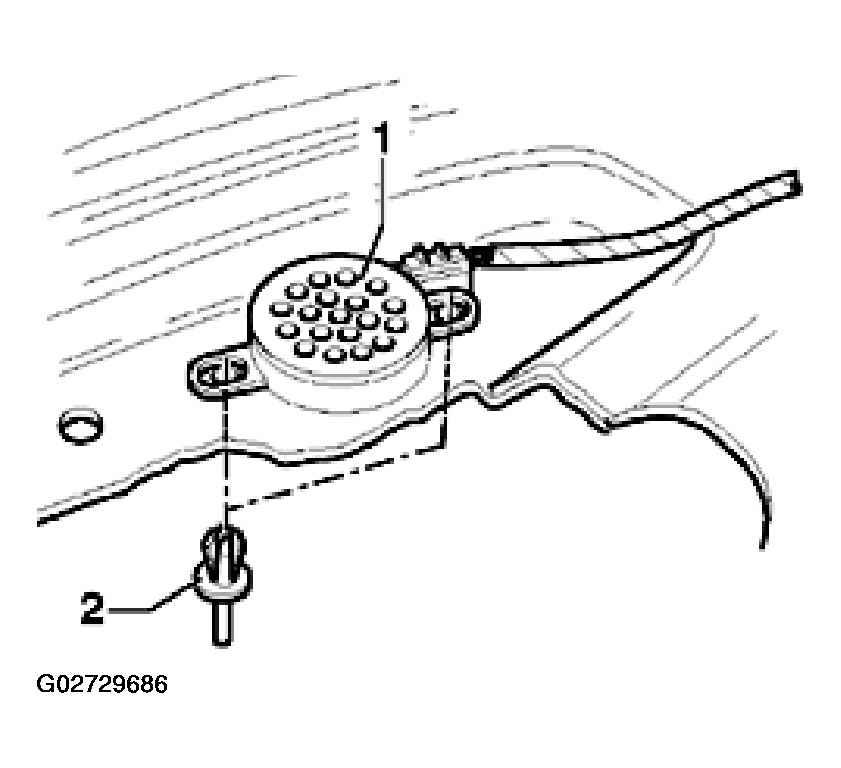

- The warning buzzer for parking -1- is located below the rear parcel shelf on the separation wall to the luggage compartment.
Remove rear parcel shelf.
- See HAT SHELF, REMOVING AND INSTALLING .
- Disconnect connector.
- Remove both expanding rivets -2-.
- Lift warning buzzer off of separation wall to luggage compartment.
