Sensor for parking assistance, rear, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

The sensors for parking assistance (arrows) are installed at rear bumper -1- as shown.

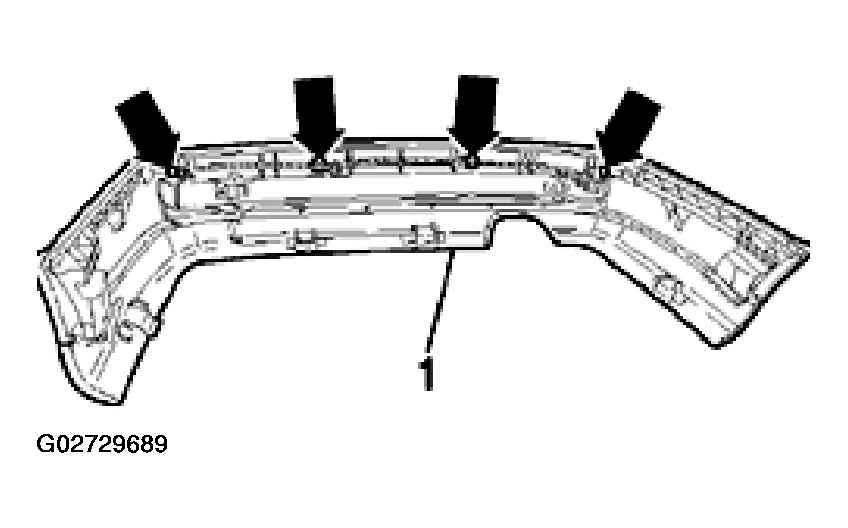

Fig 1: Locating Sensors For Parking Assistance (Rear)

Courtesy of AUDI OF AMERICA, INC.

Remove rear bumper.
See REAR BUMPER, INSTALLING .
Disconnect harness connector -1- at sensor.
Press both catches to side (arrow) and press sensor through from outside toward inside.

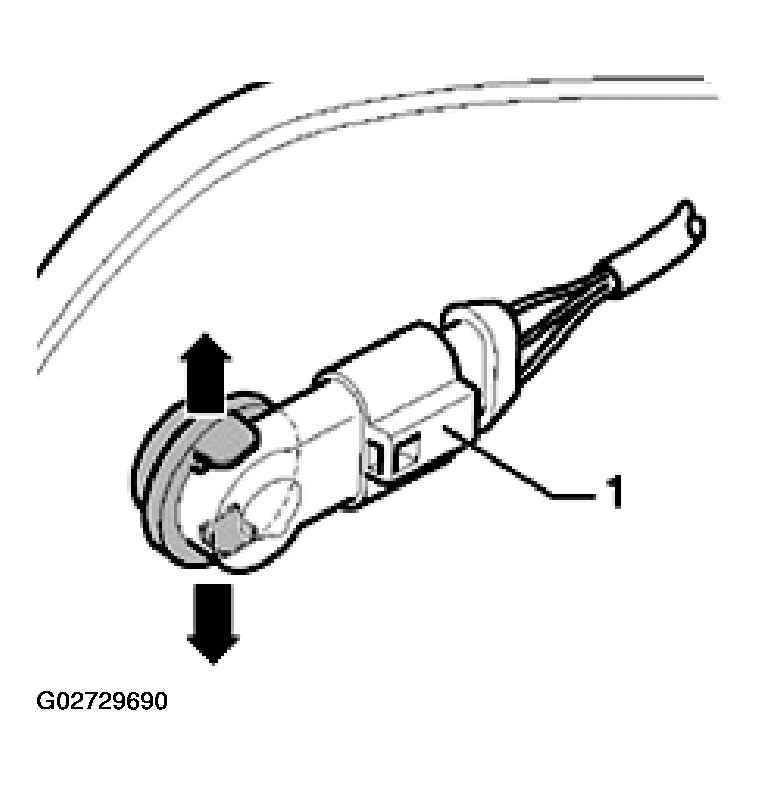

Fig 2: Pressing Catches To Side (Rear Sensor)

Courtesy of AUDI OF AMERICA, INC.
