Front parking aid warning buzzer -H22-, removing and installing: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

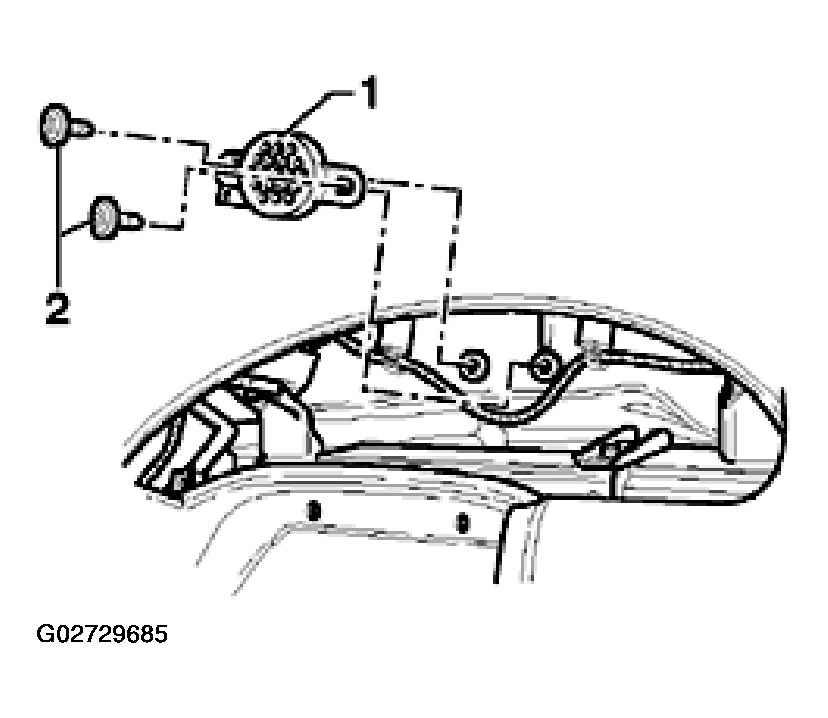

- The front parking aid warning buzzer -1- is located behind the instrument cluster.
- Remove the instrument cluster. See INSTRUMENT CLUSTER, REMOVING AND INSTALLING .
- Disconnect connector.
- Remove mounting bolts -2-.
- Remove warning buzzer.
