Control module for parking aid -J446-, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Remove cover from storage compartment at left in the luggage compartment.
Remove frame for CD-changer if installed.
See CD CHANGER - "DELTA" RADIO, REMOVING AND INSTALLING or CD CHANGER - "CONCERT" RADIO, REMOVING AND INSTALLING or CD CHANGER - "SYMPHONY" RADIO, REMOVING AND INSTALLING .
Remove both hex bolts -2- and remove the control module for parking aid -1- together with bracket -4-.

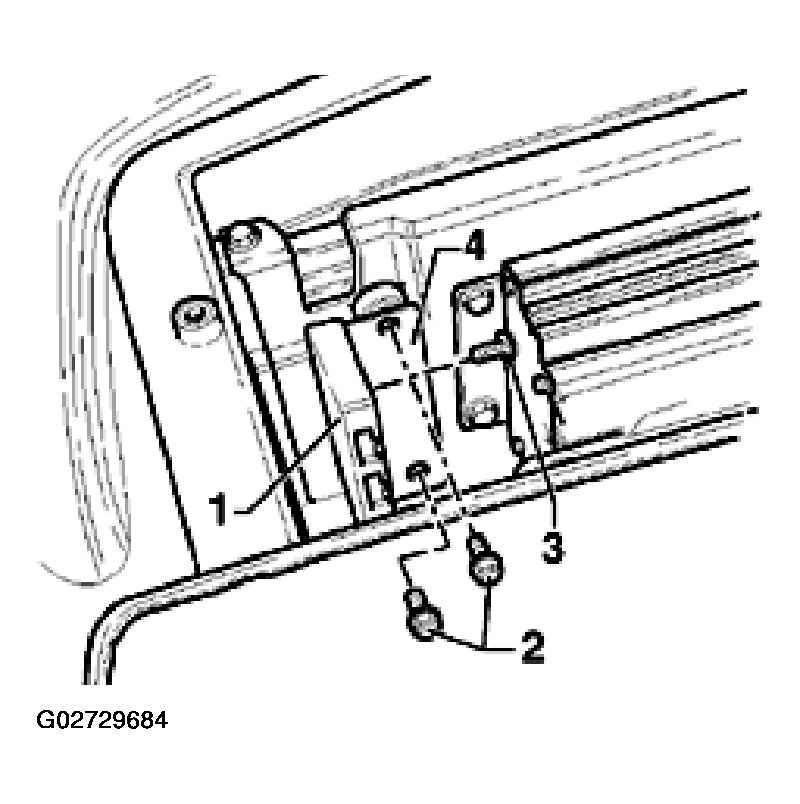

Fig 1: Removing Hex Bolts, Control Module For Parking Aid & Bracket

Courtesy of AUDI OF AMERICA, INC.

Disconnect electrical harness connectors.
Control module for parking aid -1- is secured to bracket -4- with two Phillips-head screws -3-.
