Electrically adjustable steering column switch, removing and installing: Installing:

First attach steering column switch -2- to steering column with inside hex screw -3- to provide gap of -a- = 3 mm (1/8 in.) between switch and steering wheel -1-.

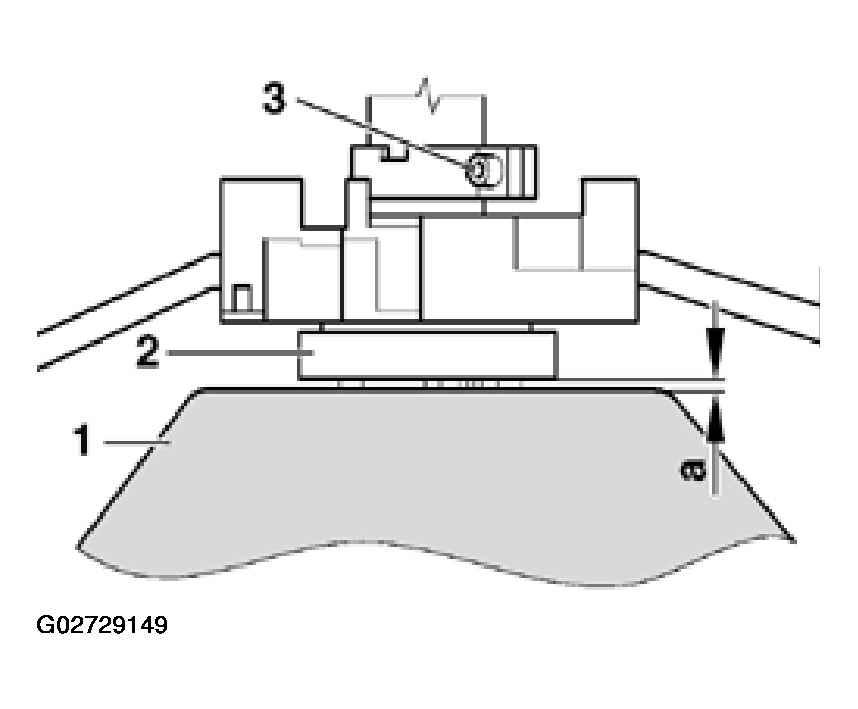

Fig 1: Identifying Steering Wheel To Steering Column Gap

Remove steering wheel again and continue installation in reverse order of removal.
