Control module for heated door lock, removing and installing

The control module for heated door locks is located at the upper door crossmember in the driver's door.

• Remove door trim panel.

  See FRONT DOOR TRIM, REMOVING AND INSTALLING .

• Remove both screws.
• Disconnect electrical connector and remove control module -1-.

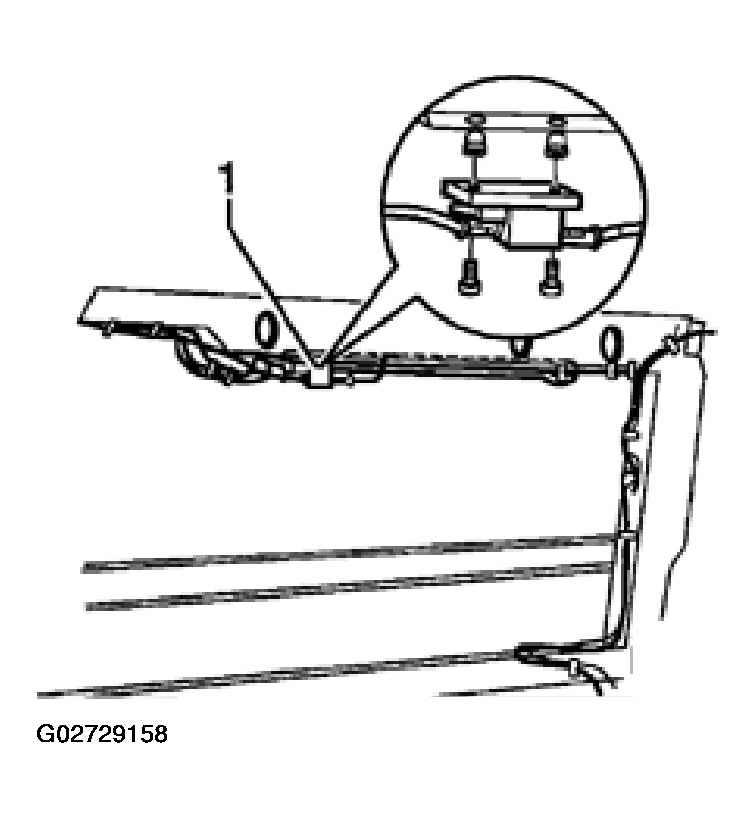

Fig 1: Removing Screws & Control Module For Heated Door Lock
