Fuel gauge adaptation

NOTE:

The adaptation only affects Reserve and has no affect on the "full" mark.
The pointer of the fuel gauge must be positioned on the right red line (reserve) of the fuel gauge when the display shows OK.
When the VAG 1551 Scan Tool is connected and the fuel gauge adaptation was selected, the "low fuel signal" is automatically deactivated.
If only the VW1301 instrument/gauge tester is connected, the "low fuel signal" must be activated by switching the ignition off for 2 minutes.

For the adaptation of the fuel gauge, the fuel sender -arrow- located under the luggage compartment cover must be disconnected.

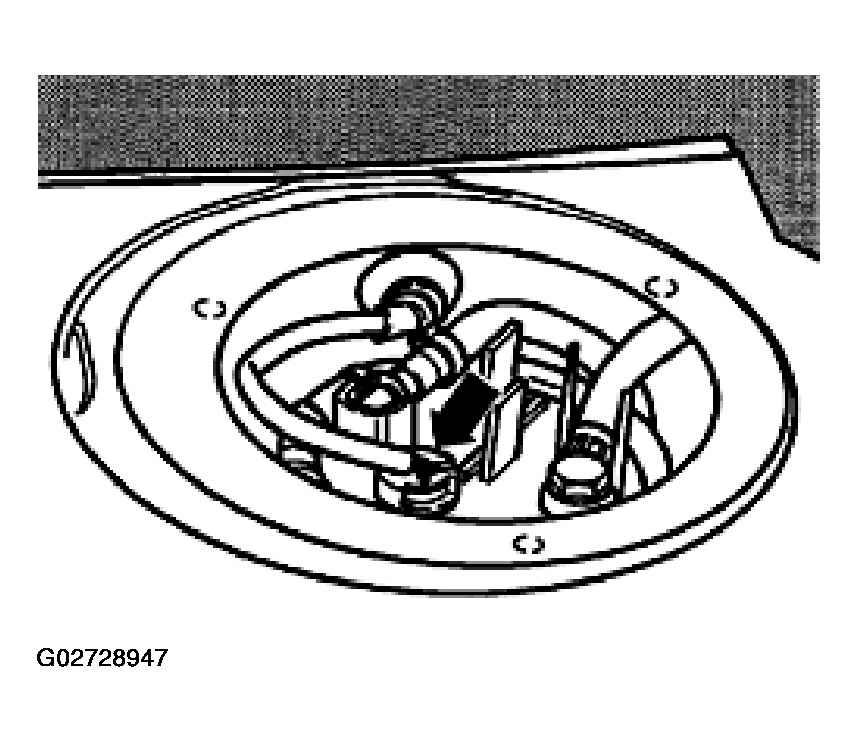

Fig 1: Locating Fuel Sender Harness Connector
Courtesy of AUDI OF AMERICA, INC.
Switch off ignition.
Connect VW1301 instrument/gauge tester to fuel gauge sender using jumper wire.

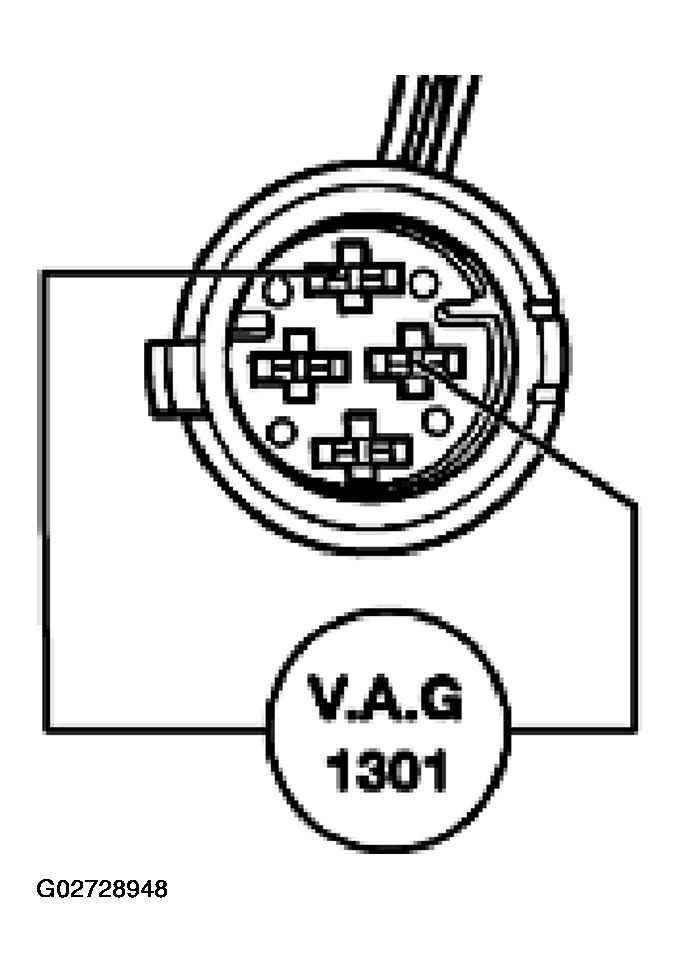

Fig 2: Connecting VW1301 Instrument/Gauge Tester To Fuel Gauge Sender
Courtesy of AUDI OF AMERICA, INC.
Adjust tester VW1301 to value 470.
Switch ignition on after 2 minutes (recognition of the "low fuel signal") and observe fuel gauge.
NOTE: The fuel gauge is OK if the pointer is positioned at the right red mark (reserve) as shown.

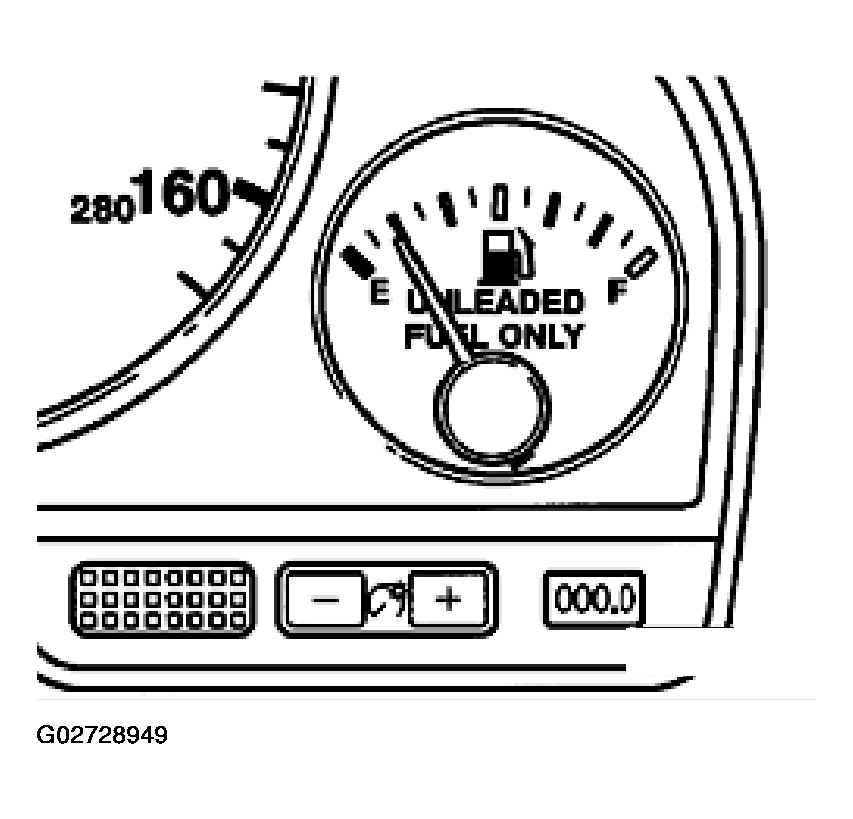

Fig 3: View Of Fuel Gauge
Courtesy of AUDI OF AMERICA, INC.
Press buttons 0 and 1.
Press Q button to confirm input.
Indicated on display.

Fig 4: Scan Tool Display - Adaptation, Fuel Gauge (1 Of 10)
Courtesy of AUDI OF AMERICA, INC.

The adaptation value can now be entered in steps or directly.

NOTE: When entering a value higher than 255, the function "Adaptation" is ended and must be started again with function "10 Adaptation."

Entering step-by-step:
Using button 1, the adaptation value can be entered using button 3 down to value 0, and up to value 255. Example: 215.
Indicated on display.

Fig 5: Scan Tool Display - Adaptation, Fuel Gauge (2 Of 10)
Courtesy of AUDI OF AMERICA, INC.
Press Q button to confirm input.
Indicated on display.

Fig 6: Scan Tool Display - Adaptation, Fuel Gauge (3 Of 10)
Courtesy of AUDI OF AMERICA, INC.
Press Q button to confirm input.
Indicated on display.

Fig 7: Scan Tool Display - Adaptation, Fuel Gauge (4 Of 10)
Courtesy of AUDI OF AMERICA, INC.
By pressing the button, end the adaptation of the fuel gauge.
Indicated on display.

Fig 8: Scan Tool Display - Adaptation, Fuel Gauge (5 Of 10)
Courtesy of AUDI OF AMERICA, INC.

Entering directly:
Press button.
Indicated on display.

Fig 9: Scan Tool Display - Adaptation, Fuel Gauge (6 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Enter desired value with VAG 1551 Scan Tool (ST), entering the first digits with "0."
Example:

Desired value to be entered: 215

Enter value with ST: 00215
Indicated on display.

Fig 10: Scan Tool Display - Adaptation, Fuel Gauge (7 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Press Q button to confirm input.
Indicated on display.

Fig 11: Scan Tool Display - Adaptation, Fuel Gauge (8 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Press Q button to confirm input.
Indicated on display.

Fig 12: Scan Tool Display - Adaptation, Fuel Gauge (9 Of 10)

Courtesy of AUDI OF AMERICA, INC.

End adaptation by pressing the button.
Indicated on display.

Fig 13: Scan Tool Display - Adaptation, Fuel Gauge (10 Of 10)
Courtesy of AUDI OF AMERICA, INC.
