Multi-pin connector -D- (6-pin - white) assignments

NOTE: The following list refers to Fig 1 .
  1. Terminal 30
  2. Terminal 31
  3. Illumination (3 W)
  4. Illumination for console (40 W)
  5. Terminal 58
  6. Terminal 15

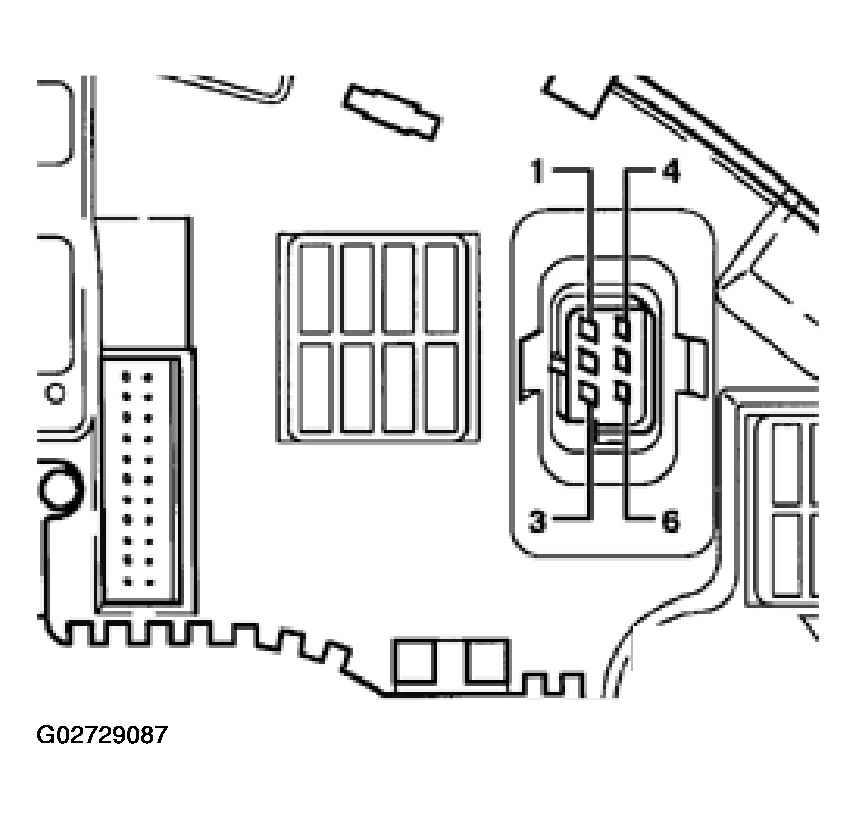

    7. Fig 1: Identifying Multi-Pin Connector D (26-Pin, White)
    G02729087
