Front bumper, removing and installing

Remove noise insulation panel. See NOISE INSULATION PANEL, REMOVING AND INSTALLING .
Unclip air inlet grill at left and right.
Unclip air guide for generator on right-side a bumper cover.
For vehicles with headlight cleaning system, unclamp hose at T-connector on right-side using 3094 hose clamps.
Pull off hose at T-connector.
Remove clips (3x) in area of front wheelhousing liner and remove both nuts at wheelhousing.
Remove bolts -1-.
Remove bumper -4- toward front.

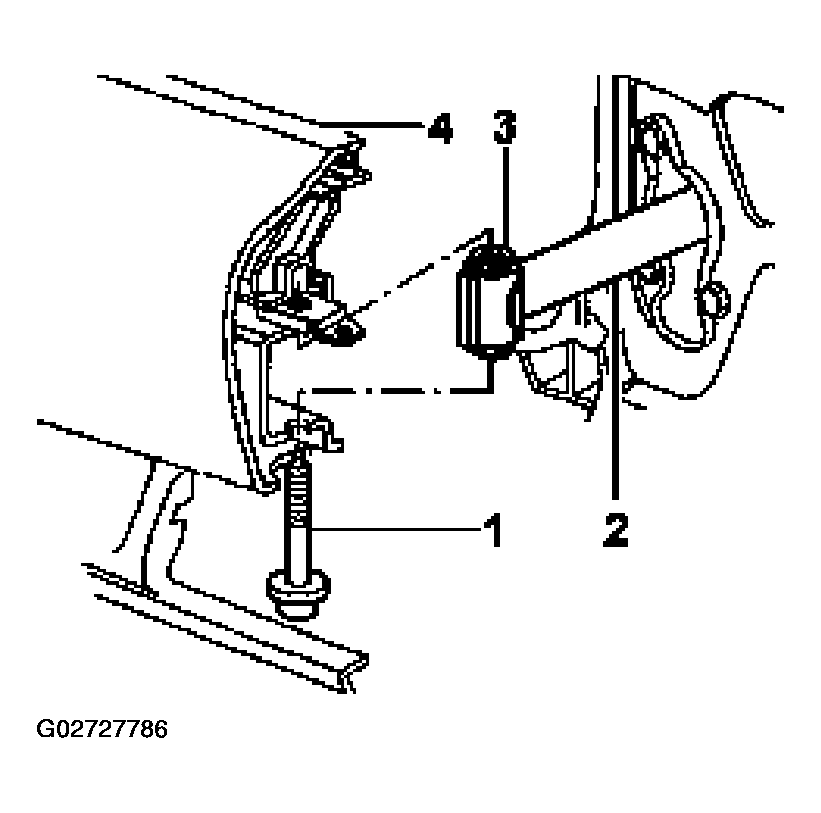

Fig 1: Lcoating Front Bumper Bolts (Up To M.Y. 1999)

Courtesy of AUDI OF AMERICA, INC.
