Strut Assembly: Disassembly

Using spring compressor VAG 1752/1, /2 and /3, slightly compress coil spring. See Fig 1.

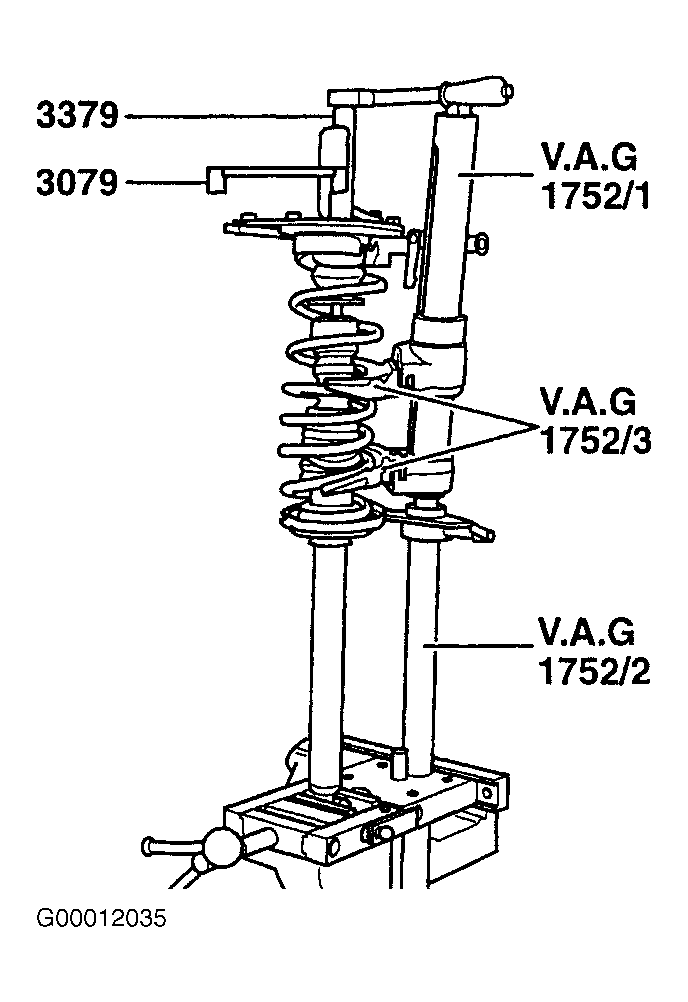

Fig 1: Compressing Strut Spring
Courtesy of AUDI OF AMERICA, INC.
Use tool 3079 to hold piston rod and tool 3379 to loosen and remove self-locking nut. Slowly release spring pressure. Remove upper retaining hardware and coil spring (compressed in VAG 1752/1). See Fig 2.

Fig 2: Exploded View Of Strut Assembly
Courtesy of AUDI OF AMERICA, INC.
