Removal & Installation (Rear Seat Back: One Piece Backrest)

1. Remove rear seat cushion. See REMOVAL & Installation (Rear Seat Cushion) .
2. Remove headrests. For vehicle with ski sack, remove ski sack frame. Remove headrest guides. See Figure.
3. Remove bolts (3). See Fig 1. Push rear backrest (1) up and detach rear backrest (1) from brackets (4). On vehicles with LATCH System: Remove tabs (2) behind LATCH bracket.
4. To install rear backrest, push tab (2) behind LATCH bracket. If LATCH is retrofitted, it may be necessary to flatten tab (2) in vise down to about 3 mm.

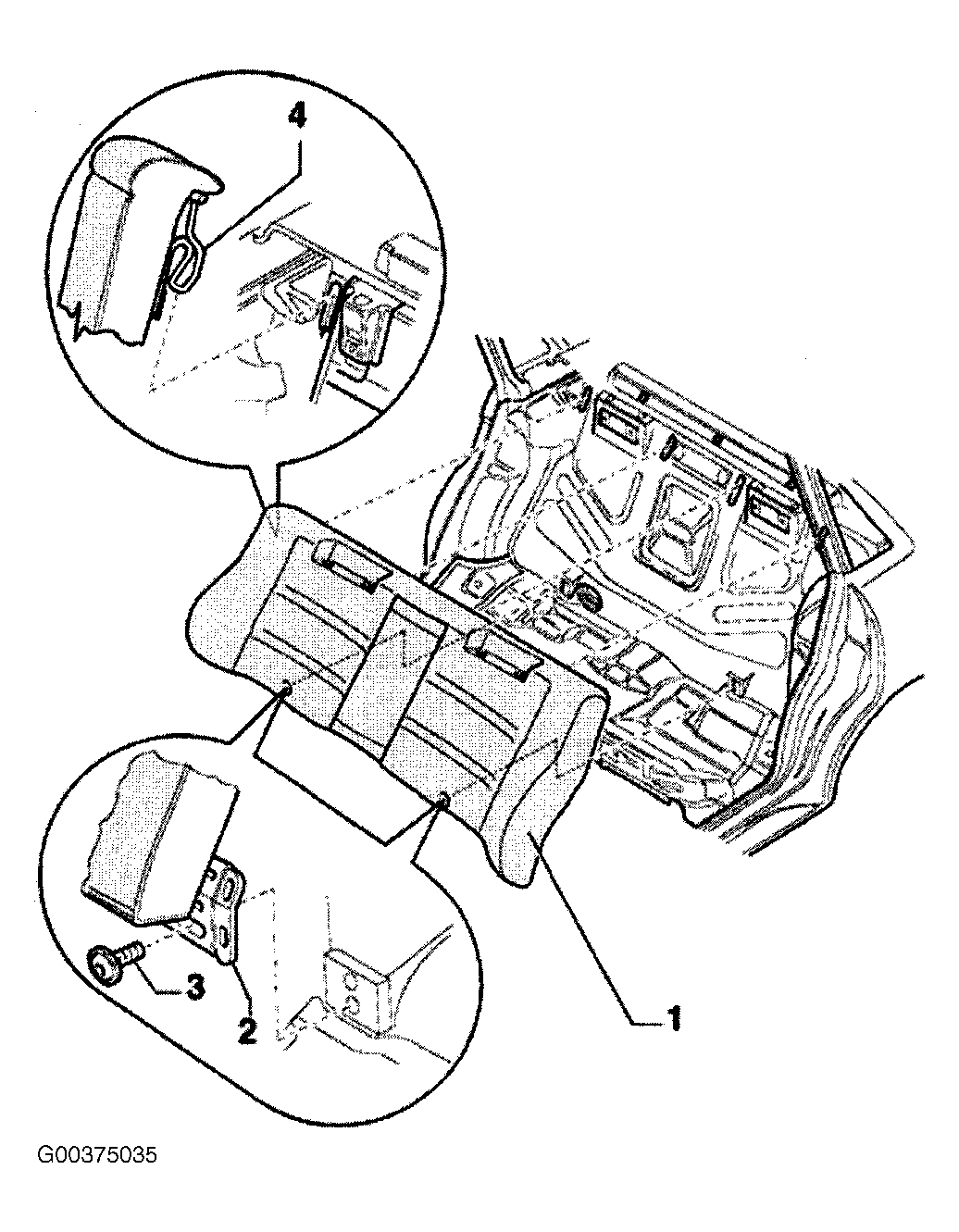

Fig 1: One Piece Rear Seat Backrest

Courtesy of AUDI OF AMERICA, INC.
