Function Mode 07: Coding Instrument Cluster

NOTE: If replacing instrument panel or Auto-Check system, ensure Auto-Check switch is in position No. 2. See Fig 1.

Press 07, then press "Q" key to confirm input. CODE CONTROL UNIT ENTER CODE NUMBER XXXXX (0-32000) will be displayed. Enter 00262. Press "Q" key to confirm input. Press right arrow key to return to select function display.

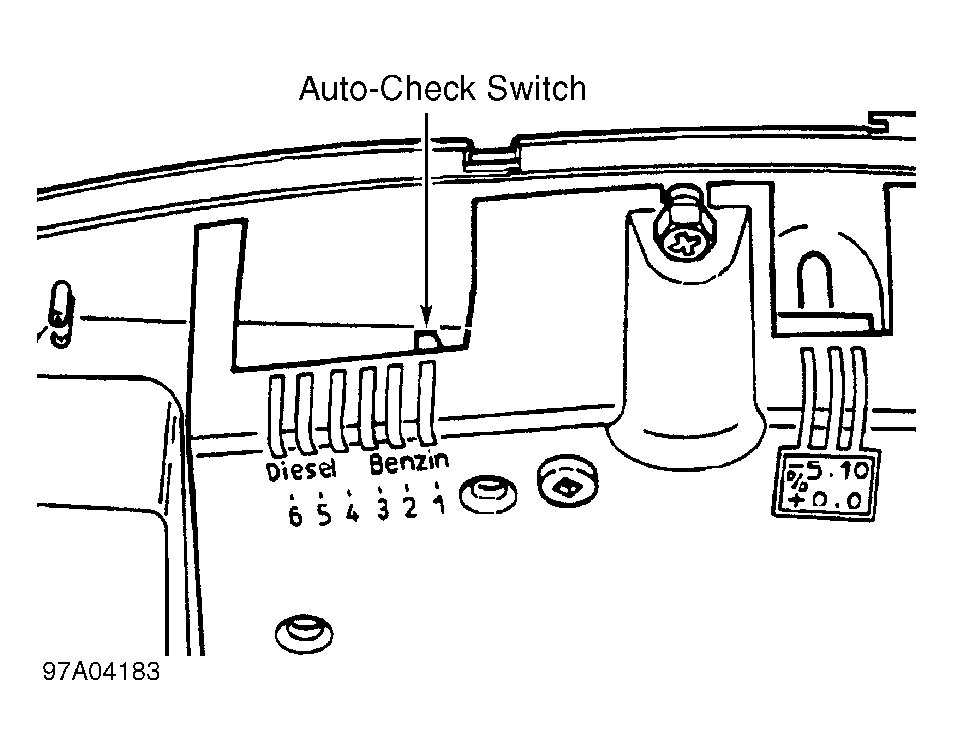

Fig 1: Identifying Auto-Check Switch

Courtesy of AUDI OF AMERICA, INC.
