Actuating Secondary Air Injection (AIR) Solenoid Valve -N112-

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2005 Audi allroad, 2004 Audi allroad, 2004 Audi A6, 2003 Audi allroad, and 2003 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Only vehicles with automatic transmission are equipped with a secondary air injection system. Vehicles with a manual transmission do not have a secondary air injection system. For this reason, on vehicles with a manual transmission the following components: Secondary Air Injection (AIR) Solenoid Valve -N112 - and Secondary Air Injection (AIR) Pump Relay -J299- will not be displayed.

Press -->button.

Indicated on display

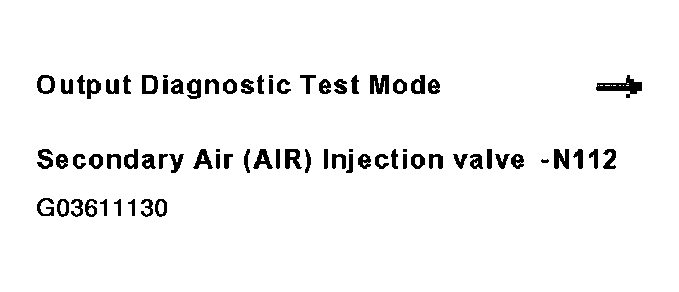

Fig 1: VAG 1551 Scan Tool Display - Actuating Secondary Air Injection (AIR) Solenoid Valve

Courtesy of AUDI OF AMERICA, INC.

Solenoid valve will continue to be actuated (i.e. will click) until --> button is pressed to advance program to next control element.

If the secondary air injection valve does not click:

Check Secondary Air Injection (AIR) Solenoid Valve -N112-.
See SECONDARY AIR INJECTION (AIR) SOLENOID VALVE -N112-, CHECKING
