Rear interior lights, removing and installing: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

To replace the bulb of the interior light, remove lens -2- only.
Light bulb -3- for interior light: 12 V, 10W (2x).

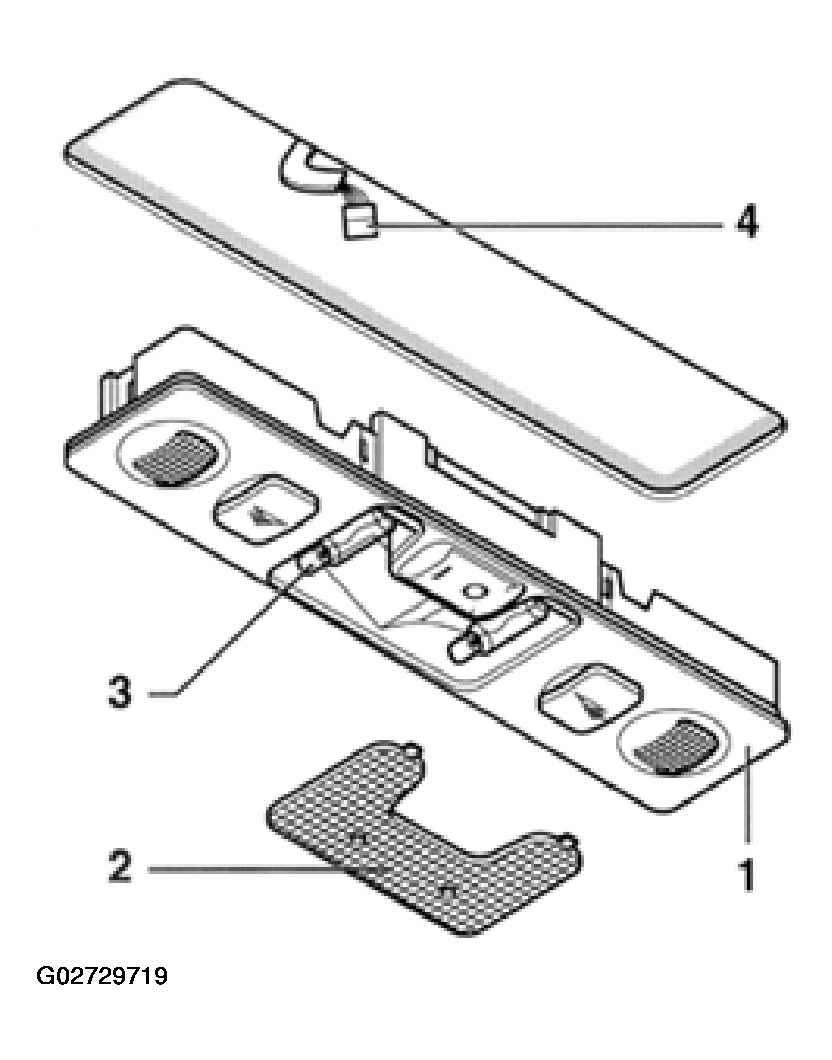

Fig 1: Removing And Installing Rear Interior Lights Components

Courtesy of AUDI OF AMERICA, INC.
