A - 14-pin harness connector

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The following list refers to Fig 1.
  1. Light switch, terminal 58
  2. Switch, terminal 14
  3. Light switch and headlight dimmer/flasher switch, terminal 30
  4. Light switch and headlight dimmer/flasher switch, terminal 30
  5. Park light switch, terminal PL
  6. Park light switch, terminal P
  7. Park light switch, terminal PR
  8. Light switch, terminal 11 (daytime running lights/city driving lights)
  9. Headlight dimmer/flasher switch, terminal 56 b
  10. Headlight dimmer/flasher switch, terminal 56 a
  11. Headlight dimmer/flasher switch, terminal 56
  12. Light switch, terminal 1 (daytime running lights/city driving lights)
  13. Light switch, terminal X
  14. Light switch, terminal 3 (daytime running lights/city driving lights)

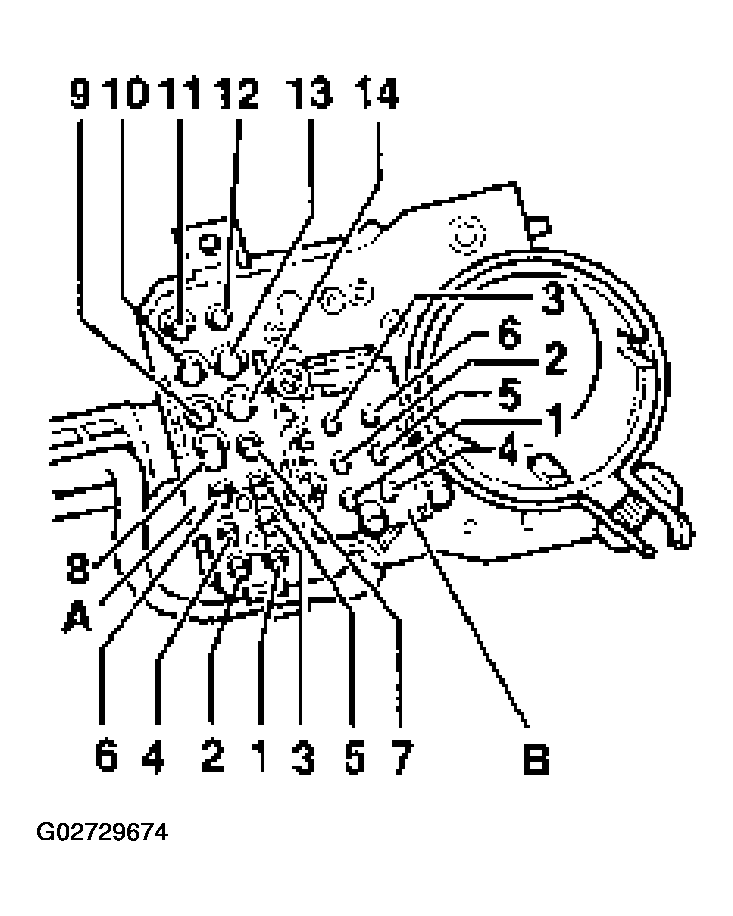

    15. Fig 1: Identifying 14-Pin Harness Connector Terminals For Light Switch, Turn Signal Switch, Headlight Dimmer/Flasher Switch, Parking Light And Cruise Control System
    G02729674Courtesy of AUDI OF AMERICA, INC.
