Steering column switches, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Secure steering column switch -2- to steering column using socket head screw -3-, maintaining a gap between steering wheel -1- of 3 mm (dimension -a-).

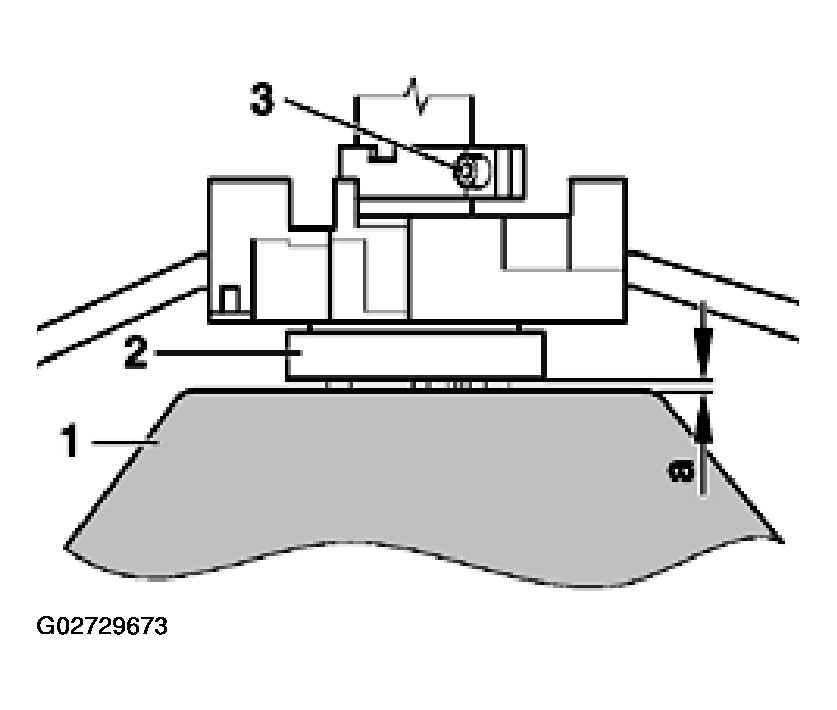

Fig 1: Checking Gap Between Steering Wheel And Steering Column

Courtesy of AUDI OF AMERICA, INC.

Remove steering wheel again and then install in reverse order of removal.
