Halogen headlights, overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

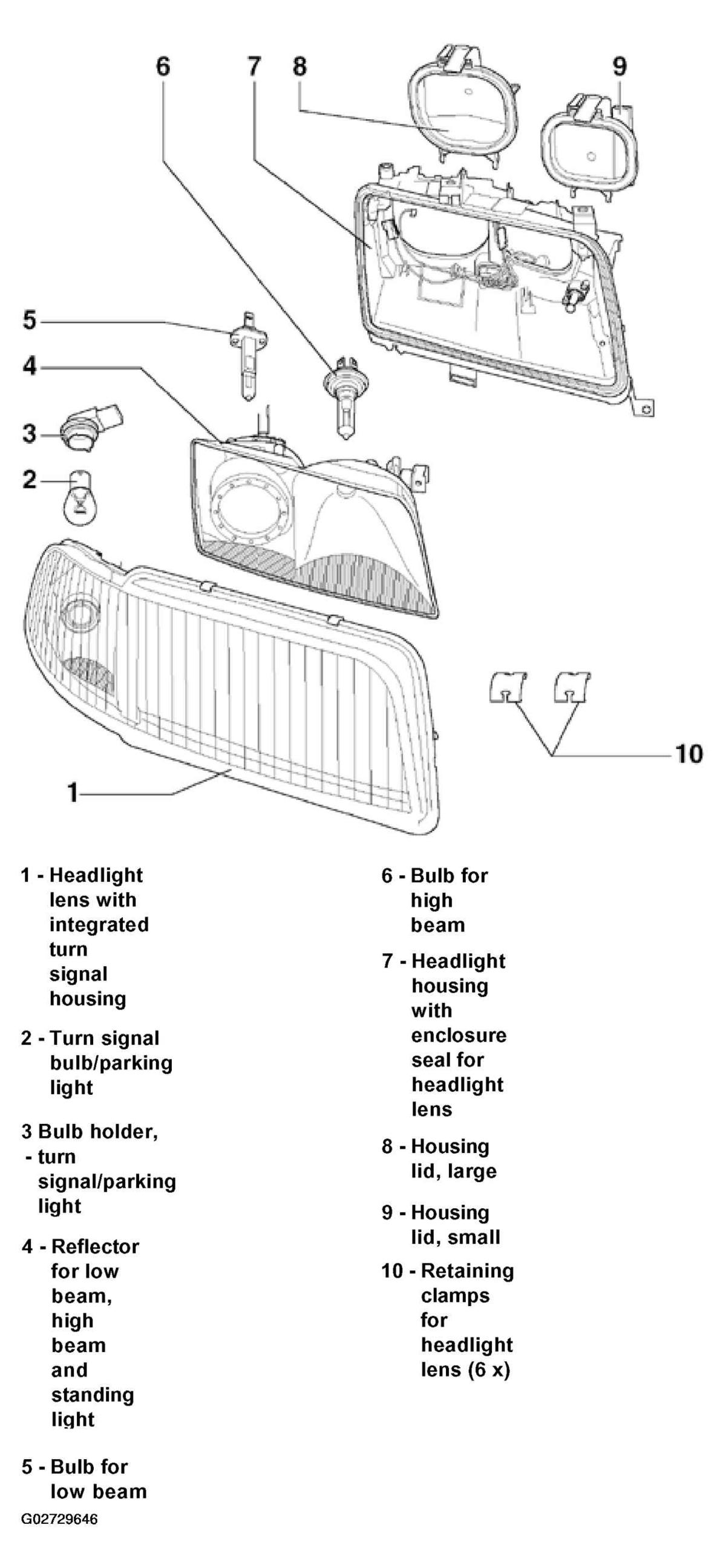

The following list refers to Fig 1.
- Headlight lens with integrated turn signal housing
- Turn signal bulb/parking light
- 12 V, 21/5 W orange
- Changing bulb. See REPLACING TURN SIGNAL BULB/PARKING LIGHT .
- Bulb holder, turn signal/parking light
- Reflector for low beam, high beam and standing light
- Bulb for low beam
- H1 - 12 V, 55 W
- Changing bulb. See HEADLIGHT BULBS, REPLACING .
- Bulb for high beam
- H7 - 12 V, 55 W
- Changing bulb. See REPLACING BULB FOR HIGH BEAM .
- Headlight housing with enclosure seal for headlight lens
- Housing lid, large
- Housing lid, small
- Retaining clamps for headlight lens (6 x)
