Fog lights, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Remove air grill by pulling latch -3- downward using a flat head screwdriver.
Remove trim plate at fog light forward. Trim plate is secured with three latches -2-.

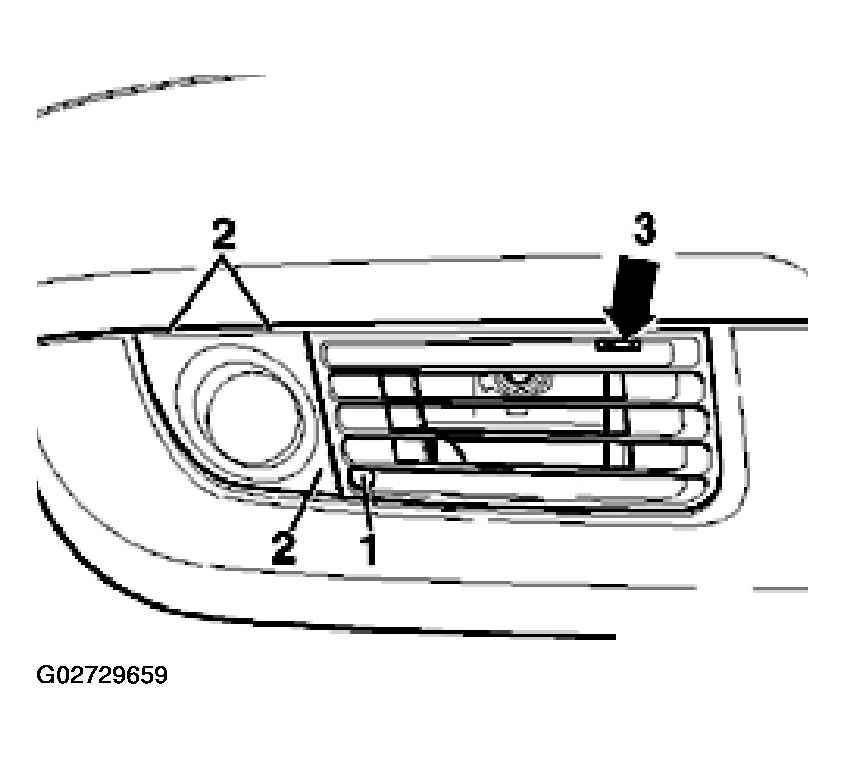

Fig 1: Removing Air Grill By Pulling Latch Downward

Courtesy of AUDI OF AMERICA, INC.

Trim plate is inserted in guides -3- at fog light.
Remove mounting screws -1-.
Remove fog light from bracket -2- by pulling forward slightly.

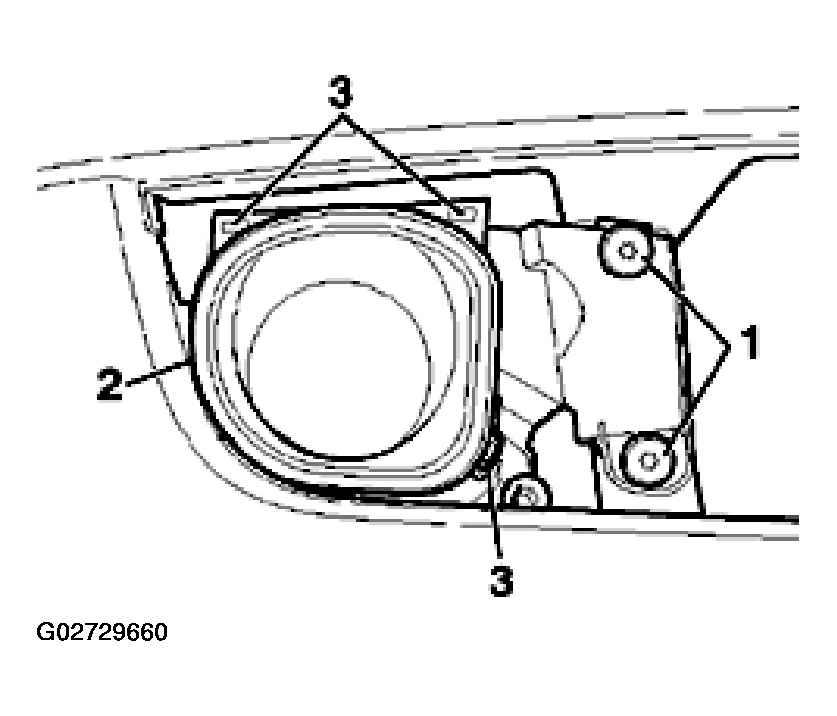

Fig 2: Removing Mounting Screws & Fog Light From Bracket

Courtesy of AUDI OF AMERICA, INC.

Disconnect electrical harness connector.
