32-pin connector for multi-function display, gray

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Audi S8, 2003 Audi A8, 2002 Audi S8, 2002 Audi A8, and 2001 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The following list refers to Fig 1 .
  1. Telematic button
  2. Multi-function switch, button branch 2
  3. Multi-function switch, button branch 3
  4. Hood switch
  5. Navigation data
  6. Fuel filler flap switch
  7. V-signal input
  8. A/C system output
  9. V-signal output 1
  10. 3rd blower level
  11. Rear lid
  12. Summer/Winter switch-over
  13. Tank warning
  14. Terminal 58
  15. Driver-side door
  16. Standing time output
  17. Washer fluid level
  18. Coolant level
  19. ABS
  20. ASR
  21. Navigation-clock
  22. Navigation-Enable
  23. Terminal 58s (Pin 1)
  24. Terminal 58s (Pin 2)
  25. Terminal 58s (Pin 3)
  26. Terminal 58d (Pin 1)
  27. Terminal 58d (Pin 2)
  28. Door lock-output
  29. Door, right-rear
  30. Door, left-rear
  31. Passenger-side door
  32. Auxiliary heater-output

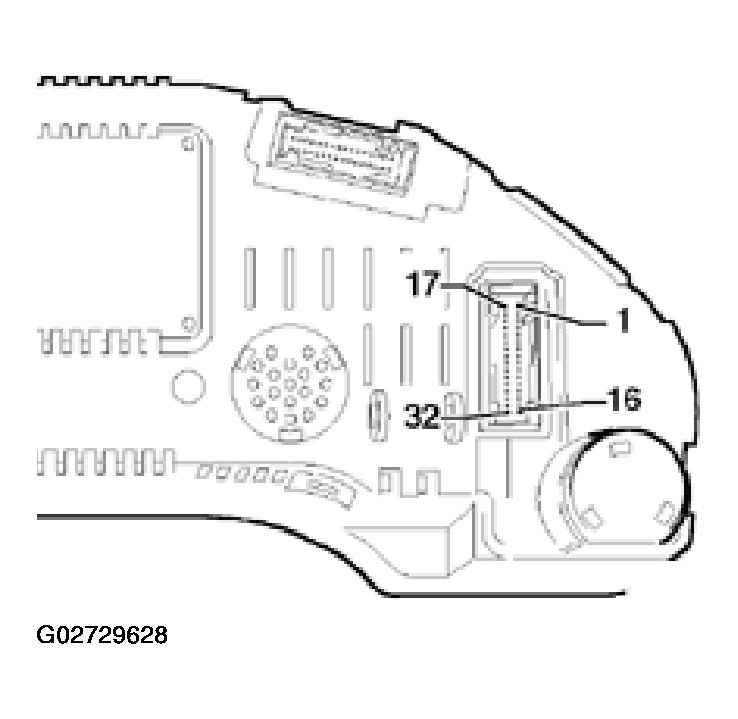

    33. Fig 1: Identifying 32-Pin Connector For Multi-Function Display, Gray
    G02729628Courtesy of AUDI OF AMERICA, INC.
